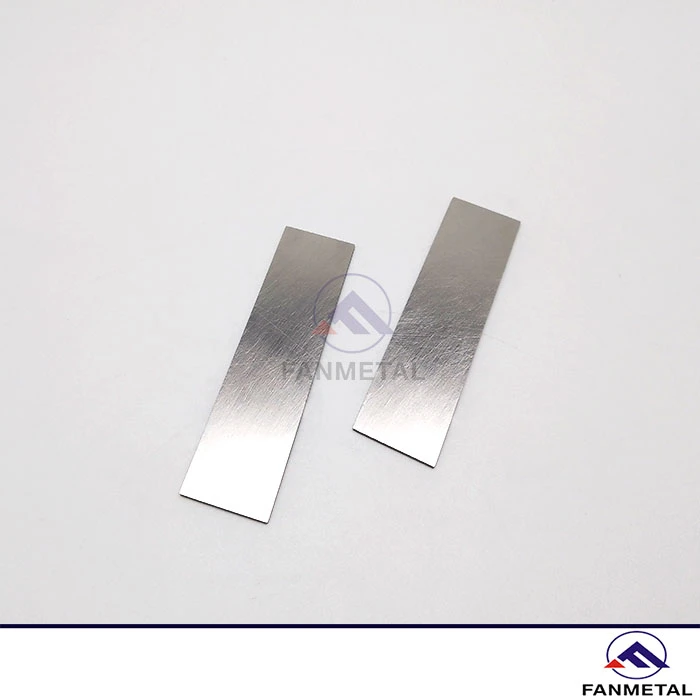

Stellite 6 Alloy Sheet
Product Form:Sheet / Plate
Surface Conditiong:As Rolled, Ground, Machined
Thickness:0.5–50 mm (Custom Available)
Width:Up to 1000 mm (Custom Available)
Length:Up to 3000 mm (Custom Available)
Hardness:36–45 HRC
Density:Approx. 8.3–8.5 g/cm³
Tolerance:According to customer requirements
Packaging:Hot Rolled, Cold Rolled, Ground, Polished
Send Inquiry
Product Details ofStellite 6 Alloy Sheet
Overview
Stellite 6 Alloy Sheet is a cobalt-based alloy sheet containing chromium, tungsten, and carbon. It is supplied in customized thicknesses, widths, and lengths for manufacturing wear-resistant components and industrial parts.
FANMETAL supplies Cobalt-Based Alloy Sheet in standard and customized dimensions. The sheets can be supplied as raw materials or machined into finished components according to customer drawings and requirements.
Key Features
High Wear Resistance Components
Manufactured from Stellite 6 Alloy Sheets are commonly selected for applications where continuous sliding contact or abrasive wear can shorten the service life of conventional steel parts.
Balanced Hardness and Toughness
Stellite 6 offers a balance of hardness and toughness. Compared with harder Stellite alloys, it provides better resistance to cracking under impact conditions.
Corrosion and Oxidation Resistance
The chromium content helps improve corrosion and oxidation resistance, allowing Stellite 6 components to maintain stable performance in chemically demanding environments.
High-Temperature Performance
Stellite 6 maintains hardness and wear resistance at elevated temperatures, making it suitable for components exposed to heat, friction, and mechanical stress.
Stellite 6 vs Other Wear-Resistant Materials
| Material | Main Advantage | Suitable For |
|---|---|---|
| Stellite 6 | Balanced wear resistance and toughness | General wear components, valves, pumps |
| Harder cobalt alloys | Higher hardness | Severe abrasive wear |
| Stainless steel | Corrosion resistance and lower cost | General industrial parts |
Applications of Stellite 6 Alloy Sheets
Stellite 6 Sheets are machined into wear-resistant parts used in equipment exposed to friction, impact, corrosion, and elevated temperatures.
Valve Seats and Sealing Components
Stellite 6 sheets are machined into valve seats, sealing rings, and valve components requiring wear resistance under repeated mechanical contact.
Pump Wear Components
Used for manufacturing wear rings, sleeves, and other pump parts exposed to abrasion and sliding wear.
Industrial Wear Components
Processed into wear-resistant inserts, guide parts, and components used in equipment exposed to friction and mechanical wear.
Oil & Gas Valve Components
Used in choke valves, control valves, and sealing components operating under pressure, friction, and harsh service conditions.
Available Processing Services
FANMETAL provides machining services for Stellite 6 Alloy Sheets, including:
-
Cutting to required dimensions
-
Surface grinding
-
CNC machining
-
Custom components based on drawings
Packaging
Stellite 6 Alloy Sheets are packaged according to product dimensions, quantity, and shipping requirements to protect the material during transportation. Packaging methods can be selected according to product size, quantity, and customer shipping requirements.
Available packaging options include:
01
Carton Packaging
Suitable for small sheets and small quantity orders.
02
Wooden Case Packaging
Used for larger sheets or export shipments requiring additional protection.
03
Customized Packaging
Available according to customer requirements.
Before shipment, products are properly protected and packed to ensure they arrive in good condition.
FAQ
What is the difference between Stellite 6 Sheet and Stellite 6 Plate?
Stellite 6 Sheet and Stellite 6 Plate are made from the same cobalt-based alloy, but they are generally distinguished by thickness and intended use. Sheets are typically thinner and easier to cut, form, and machine, while plates are used for thicker sections requiring greater material strength. The exact classification may vary by supplier, so dimensions and application requirements should be confirmed when ordering.
Can you supply machined Stellite 6 components according to drawings?
Yes. FANMETAL can supply machined Stellite 6 components according to customer drawings and specifications. The sheets can be cut, machined, and processed into custom wear-resistant parts based on required dimensions, tolerances, and application requirements.
What thicknesses are available for Stellite 6 Alloy Sheets?
Stellite 6 Alloy Sheets are available in various thicknesses depending on material availability and customer requirements. FANMETAL supplies standard and customized thicknesses, widths, and lengths for different machining and fabrication needs.
How is Stellite 6 different from stainless steel?
Stellite 6 and stainless steel are different in composition and performance characteristics. Stellite 6 is a cobalt-based alloy designed for wear-resistant applications, offering better resistance to abrasive wear, sliding wear, and high-temperature wear. Stainless steel is commonly selected for corrosion resistance, general mechanical strength, and cost-effective applications. The suitable material depends on the working environment, wear conditions, temperature, and service requirements.
What information should I provide when requesting a quotation for Stellite 6 Alloy Sheets?
When requesting a quotation, please provide the required alloy grade, sheet dimensions (thickness, width, and length), quantity, surface requirements, machining requirements, and delivery requirements. If custom parts are needed, please also provide drawings or technical specifications for evaluation.
