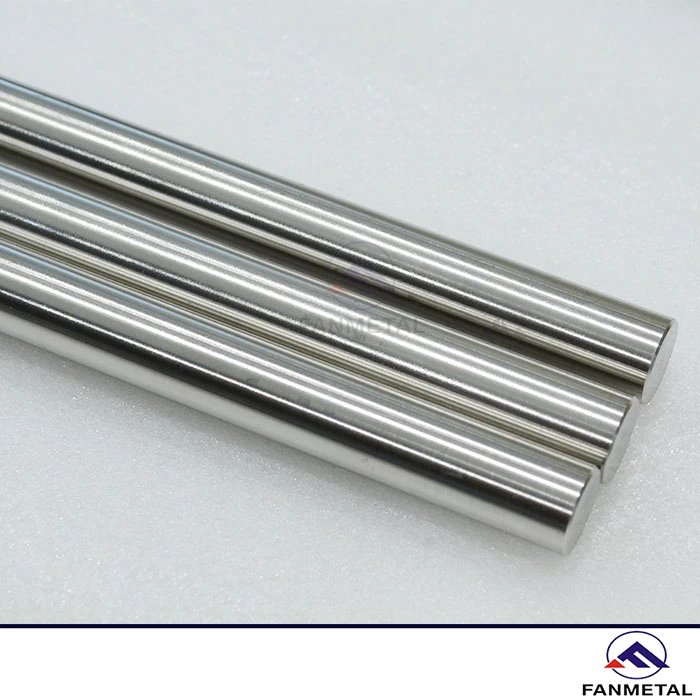

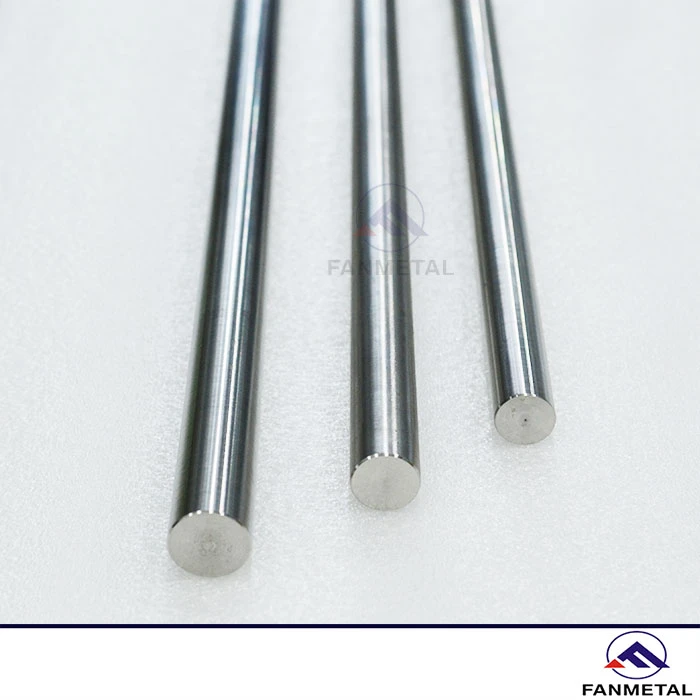

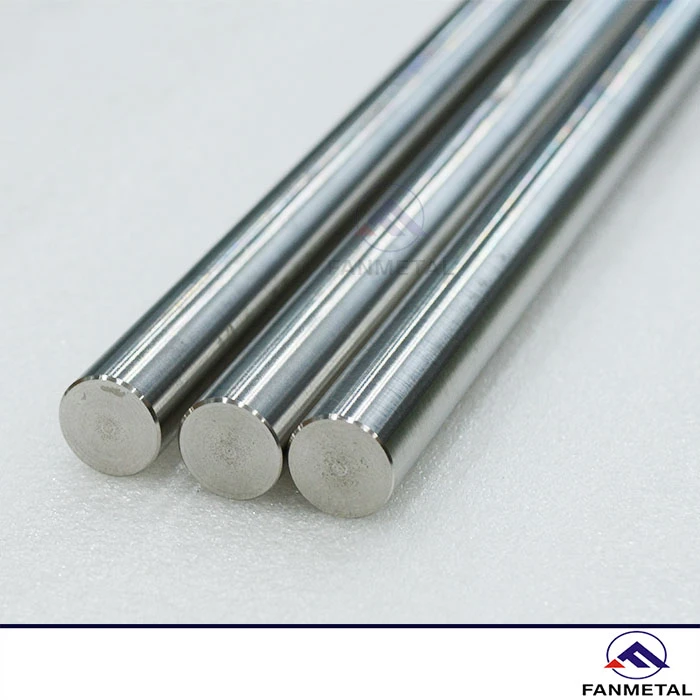

Stellite 6B Rod
Overview
Stellite 6B Rod is a high-performance alloy bar composed of cobalt alloy, such as chromium, tungsten, and carbon. A forging process (hot forging followed by multiple deformation passes) refines the grain size and increases material density, resulting in excellent wear resistance, high-temperature resistance, and corrosion resistance, while maintaining a certain degree of toughness. It is widely used in applications requiring extreme adaptability to operating conditions, such as oil drilling (drill pipe joints), aerospace (high-temperature bearings), medical (artificial joints), and chemical (corrosion-resistant valve stems). It is a key structural component material that replaces common alloys and meets the needs of high-end applications. FANMETAL not only provides customers with other cobalt-based alloy products, such as electrodes, ball valves, and nozzles, but also manufactures tungsten alloys, titanium alloys, nickel alloys, noble metals, and sputtering targets etc.
Alloy 6B Characteristics
Exceptional wear resistance
High hardness, wear rate is only 1/8 of 304 stainless steel, 2/3 of tungsten carbide coating. Highly resistant to abrasive wear, adhesive wear, and fretting wear, the lifespan is several times that of ordinary materials.
01
Outstanding high-temperature performance
It can maintain high hardness and strength even at extremely high temperatures (up to 900-1000°C) and recover its original hardness after cooling. It is widely used in high-temperature processing and aerospace fields.
02
Outstanding corrosion resistance
Chromium and molybdenum elements can effectively prevent the penetration of corrosive media and withstand long-term erosion by strong acids and alkalis. It can also effectively resist cavitation damage and particle erosion in high-speed fluid environments.
03
Good value for money
Compared with pure tungsten-based alloys or high-end nickel-based alloys, Alloy 6B maintains high performance while being less expensive. It is especially economical in scenarios where wear resistance, corrosion resistance, and high temperature resistance are required, significantly extending equipment maintenance cycles.
04
Stellite 6B Rod Dimension
|
Grade |
Co 6B |
| Purity | Co:61.5%;Cr:28-32% |
| Density | 8.3 g/cm3 |
|
Size |
Φ10-500mm |
|
Length |
≤2500mm |
|
Hardness |
38-42 HRC |
|
Shape |
Round |
|
Delivery Time |
7-20 days |
|
Standard |
AMS 5894, DIN, ASTM, GB |
|
Certification |
ISO9001 |
Application
1. Aerospace Components
Stellite 6B Rods are used in the manufacture of critical engine components such as turbine blades, combustion chamber seals, and fuel nozzles, as well as high-temperature bearings and fasteners, maintaining dimensional stability in high-temperature environments.
2. Precision Measuring Tools
Cobalt Alloy 6B Bars are used in high-precision gauges and machine tool guide bushings, maintaining long-term dimensional accuracy and suitable for ultra-precision machining applications such as semiconductor manufacturing.
Cobalt 6B Rod is used in the manufacture of electronic component packaging molds, resisting erosion and corrosion from molten plastic, ensuring mold life and product consistency.
3. Oil and Gas Extraction
Cobalt 6B Rods are used in the manufacture of pipes, drill pipe joints, drill tool bearings, valve seats and stems, agitator blades, and reactor internals, resisting high-speed erosion and high-load friction, extending service life.
4. Hot Working Dies
Hot Extrusion and Forging Dies: These dies are used for hot extrusion of non-ferrous metals such as aluminum and copper. They maintain hardness and thermal fatigue resistance at temperatures of 800-900°C, preventing mold failure due to softening or thermal cracking.
Die-casting molds: Withstand the high-speed impact of molten metal and cyclic thermal stress, reduce mold sticking, and improve casting surface quality.
5. Chemical and Petrochemical Industries
Used in the manufacture of reactor agitator shafts, corrosion-resistant valve stems, and pump shafts. They withstand erosion from corrosive media and mechanical vibration, preventing corrosion fatigue fracture.
6. Energy and Power
Used in the manufacture of seals and fasteners for nuclear power plant components, addressing the dual challenges of radiation and corrosion.
7. Marine Engineering
Used in the manufacture of desalination equipment components, subsea valves, and pipe joints, particularly in deep-sea high-pressure, high-salt environments, to prevent corrosion and biofouling, extending maintenance intervals.
8. Medical Implants
After precision machining and surface treatment, these load-bearing components of hip and knee prostheses are biocompatible (compliant with ISO 10993 standards) and wear-resistant, ensuring a service life of over 15 years.
9. Food and Beverage Processing
Used in the manufacture of dairy cutting knives and centrifuge bowl linings, preventing metal ion contamination of food while resisting organic acid corrosion and mechanical wear.
Process
① Melting cobalt, chromium, tungsten, and other raw materials under vacuum conditions to minimize oxidized impurities and ensure compositional uniformity.
② Forming bar blanks via centrifugal casting or directional solidification processes to reduce grain boundary defects and optimize crystalline structure.
③ Performing hot isostatic pressing to eliminate internal porosity in castings, enhance density, and achieve high-precision bar stock.
④ Forging or age hardening at elevated temperatures further elevates hardness and extends wear resistance.
⑤ Turning and grinding processes guarantee dimensional accuracy while preventing work hardening.
⑥ Electrolytic polishing followed by passivation treatment enhances corrosion resistance and wear resistance.
⑦ Comprehensive quality inspections encompass mechanical property testing, chemical composition analysis, non-destructive testing, and visual inspection.
