TC4 Titanium Welding Wire

Overview

TC4 Titanium Welding Wire is the most mainstream filling material for titanium alloy structural welding, with high strength, light weight, corrosion resistance, and high temperature resistance, and its applications are concentrated in aerospace, shipbuilding, marine, medical, chemical, high-end equipment, and other fields. FANMETAL has rich production experience and foreign trade experience, which can not only provide customers with high-quality products but also provide excellent one-stop service, from early inquiry to after-sales feedback, and can continuously meet customer needs.

6AL-4V Characteristics

• Excellent mechanical properties: high strength, specific strength about 3 times that of steel, taking into account both lightweight and bearing capacity; Good toughness, strong crack resistance, suitable for structural parts welding; Low temperature does not lose plastic, high temperature does not soften.
• Stable chemical properties: resistant to seawater, acid, alkali, salt spray corrosion, and stable in chemical, marine, and medical environments close to pure titanium. The surface is prone to the formation of a dense oxide film without the need for additional anti-corrosion coatings.
• High welding performance: suitable for TIG, MIG, plasma welding, electron beam welding, low porosity and crack tendency of welds, can be used to process high-quality stainless steel or other alloy products.
• Good biocompatibility: anti-fatigue, non-toxic, and non-repulsive, can be used for medical implant welding, and is suitable for long-term placement in complex body fluid environments without deformation.

Titanium Welding Wire Dimension

TC4 Titanium Welding Wire Application

Titanium TIG Welding: Precision parts, medical devices, small equipment, high-quality small-batch production.

MIG Welding (Titanium/Plasma Welding): Large components, mass production, aerospace structures, vehicle frames.

Laser/Electron Beam Welding: Precision welding of implants, high-strength, lightweight load-bearing structures.

Aerospace titanium welding	Aircraft fuselage frame, spar, reinforcing rib welding; Engine nacelles, deflectors, brackets, fastener assemblies welding; helicopter rotor components, landing gear support structure; missiles, satellite cabin structures, brackets, fuel tanks; Lightweight load-bearing structure of aviation seats.
Ship and Ocean Engineering	Deep-sea equipment, submersible hulls, marine monitoring equipment frames; seawater desalination equipment, seawater pipelines, valves, pumps; ship superstructures, masts, and support components; corrosion-resistant supports and heat exchanger components for offshore platforms.
Petrochemical industry	Chemical reaction vessels, heat exchangers, pipes, and flanges; structural components for acid-resistant, alkali-resistant, and salt spray-resistant equipment; downhole tools and wellhead devices for oil and gas extraction.
Medical implantation field	Welding of orthopedic artificial joints, bone plates, bone screws, and spinal internal fixation systems; surgical instrument forceps, tweezers, and equipment housings; lightweight support structures for medical imaging equipment.
High-end automotive industry	Lightweight chassis, exhaust system, and suspension components for racing cars; motor housings and lightweight structural components for new energy vehicles; high-performance wheels and chassis reinforcement components.
Sports and outdoor equipment	High-end bicycle frames and seatposts; ski fasteners and golf club heads; outdoor tent frames and diving equipment.
Other industries	Vacuum furnace chamber; precision instrument brackets, optical equipment, structural components; cryogenic equipment (liquid nitrogen, liquid oxygen environment components).



Titanium Wires Process

(1) Prepare high-purity titanium sponge and aluminum vanadium intermediate alloy (Al-V), and batch according to the ratio of Ti-6Al-4V.

(2) Melt 2~3 times in a vacuum self-consumption electric arc furnace to reduce the impurity content and ensure uniform composition.

(3) Forging the ingot in multiple fires, gradually forging it into Φ20-50mm bars, and cooling it to below 500°C after hot processing.

(4) From coarse to fine, the deformation amount of each pass is 10%~15%, and gradually pulled to the target diameter.

(5) Intermediate annealing must be carried out to eliminate stress, restore plasticity, and prevent tearing and cracking.

(6) Precision straightening and surface treatment, mechanical polishing and chemical pickling to remove drawing scratches and oxide layers.

(7) Comprehensive quality testing, such as non-destructive testing, composition analysis, dimensional accuracy inspection, mechanical property testing, etc.

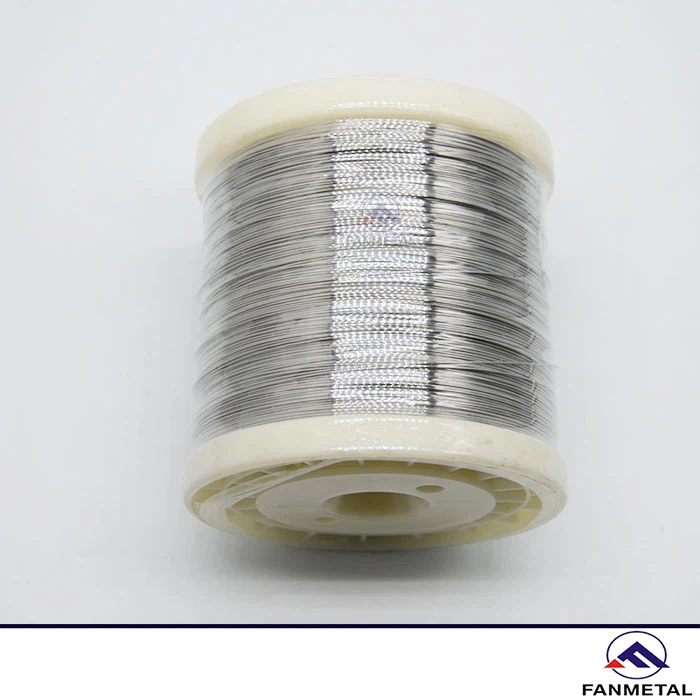

TC4 Titanium Welding Wire Pictures

Video

Company profile



FANMETAL TECH CO LTD is mainly engaged in the production and sales of tungsten alloy, molybdenum alloy, cemented carbide, sputtering target, titanium alloy, zirconium metal, Iridium, and Stellite. FANMETAL's main production, technical, and sales employees have 10-30 years of experience, with skillful mechanical processing, surface treatment, as well as finished products sales and customer service solutions. It can help customers solve various problems encountered during production and is used to improve efficiency.

01

High Quality

ISO9001 certificates, MTC certificates, or test reports from third-party institutions can be provided.

02

Advanced Equipment

Our factory has advanced equipment such as vacuum furnaces, press brakes, and CNC machining equipment.

03

Professional Team

The technical team and sales team have more than ten years of experience and can provide professional technical and after-sales support.

04

Custom Service

It can be customized according to the drawings and can meet the individual requirements of customers in terms of size and surface treatment.

Case

TC4 Titanium Welding Wire, Titanium Wires To Estonia

Recently, our company successfully delivered a batch of customized Titanium welding wires to an Estonian customer, marking the successful completion of the first cooperation between the two parties and laying the foundation for expanding the European titanium market. The customer was a well-known local machinery manufacturer who had previously sought a reliable supplier again due to welding defects and unqualified dimensions in other suppliers' products. Our company quickly responds to customer needs, provides welding wires that meet international standards, solves customer pain points by optimizing production processes, and provides one-stop service support. The customer is highly satisfied with the product quality and our service, and plans to deepen cooperation.


Product qualification
