Name: Customized Titanium Sheet And Plate Suppliers, Manufacturers, Factory - Wholesale Price - FANMETAL
Brand: FANMETAL
SKU: 299604089

Overview

Titanium Sheet And Plate is a high-strength, corrosion-resistant metal product made of grade 5 titanium alloy, the main composition of which is 90% titanium, 6% aluminum, and 4% vanadium, with low density, high specific strength, and good biocompatibility, widely used in aerospace, medical implants, marine engineering, and high-end sports equipment and other fields. Grade 5 is the most commonly used type of titanium alloy; it can also be called: Ti-6Al-4V, UNS R56400, DIN 3.7164, TC4, etc. The core advantage is the comprehensive balance of high strength, low density, corrosion resistance, high temperature resistance, and biocompatibility. If you want to know the detailed size and performance parameters, please feel free to contact us by email.

Ti-6Al-4V properties

01.

Extremely high specific strength

The strength is close to that of alloy steel, and the density is only about half that of steel; the lightweight effect is outstanding.

02.

Excellent corrosion resistance

The surface is easy to form a stable oxide film, resistant to corrosion of seawater, acid, alkali, and other media, which is better than conventional stainless steel.

03.

Comprehensive performance balanced

The medium temperature performance is stable, weldability and toughness are good, and strength can be improved by heat treatment.

04.

Good biocompatibility

It is non-toxic and non-magnetic, highly compatible with human tissues, and is widely used in orthopedics, dentistry, and other implantable instruments.

Grade 5 titanium sheet specification

Chemical Composition

Element	Ti	V	Al	Fe	O	C	N	H	Other
Content range	Bal.	3.5 - 4.5%	5.5 - 6.75%	≤ 0.40%	≤ 0.20%	≤ 0.08%	≤ 0.05%	≤ 0.015%	≤ 0.1% individually, ≤ 0.4% in total

Mechanical Properties & Standard

Performance	Annealing state value	International standards	Corresponding grade
Tensile strength	≥ 895 MPa	ASTM	B265 Grade 5
yield strength	≥ 828 MPa	UNS	R56400
Elongation	≥ 10%	DIN	3.7164
Section shrinkage	≥ 25%	ISO	Ti-6Al-4V
Hardness	30-34 HRC	CHINA GB/T	TC4
Modulus of elasticity	105-116 GPa	AMS	4911/4928

application

1. Aerospace

Titanium sheets and plates are commonly used in aircraft fuselage skins, wing siding, engine compartment structural parts, and spacecraft load-bearing plates. With the characteristics of high specific strength, high temperature resistance, and light weight, it greatly reduces the weight of the whole aircraft while ensuring structural strength and rigidity, and meets the requirements of aero engine peripherals and high-speed aircraft.

2. Medical implants and surgery

Titanium sheet stock is mainly used for orthopedic bone plates, spinal internal fixation plates, dental implant abutment,s and surgical instrument bases. The material is non-toxic, non-magnetic, has good affinity with human tissues, and is not easy to produce rejection reactions. At the same time, it has high strength and resistance to body fluid corrosion, and can be implanted in the body for a long time to meet the clinical needs of bone support, fixation, and repair.

3. Marine engineering and ships

Titanium alloy plates are used in seawater heat exchanger plates, ship structural parts, deep-sea equipment shelves, and offshore platform anti-corrosion components. Titanium plates are highly corrosion-resistant in seawater and salt spray environments, and can serve for a long time without additional anti-corrosion coatings, effectively improving the service life and reliability of ships and deep-sea equipment.

4. Petrochemical and corrosion-resistant equipment

Plate titanium degree 5 is mostly used in reactor liners, electrolyzer plates, chemical pipeline flanges, and structural plates of equipment under strong corrosion conditions. It is far better than stainless steel in acid-alkali, chloride ions, and high-temperature corrosive media to ensure the continuous and stable operation of chemical production.

5. High-end automobiles, machinery, and equipment

It is commonly used in high-performance racing, lightweight body parts, engine heat insulation plates, suspension structure plates, and high-speed mechanical wear pads. It improves the rigidity and stability of mechanical structures while reducing weight, reducing energy consumption, and improving the responsiveness of moving parts.

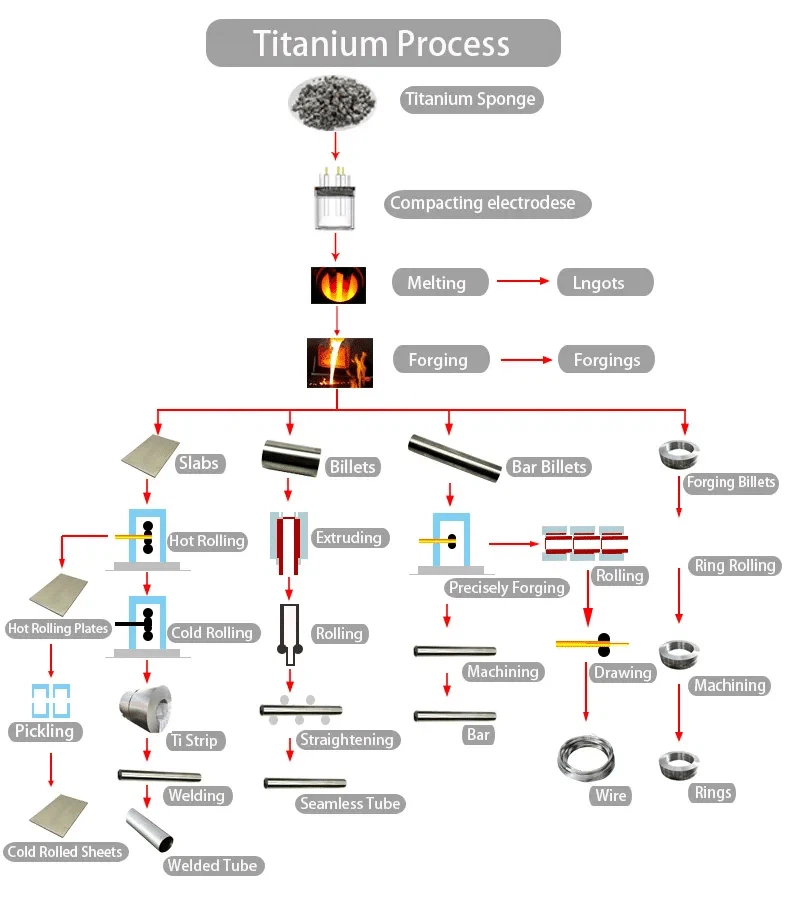

Processing

(1) Ingot preparation: Titanium, aluminum, vanadium, and other raw materials are smelted at high temperatures to cast into large titanium ingots (to ensure uniform and pure composition).

(2) Hot rolling: heat the titanium block to a high temperature, repeatedly roll it into a plate, control the thickness and temperature, and perform preliminary forming.

(3) Cold rolling: further thinning at room temperature, annealing in the middle to soften the material, improving surface accuracy and strength.

(4) Heat treatment: Adjust the hardness, toughness, and corrosion resistance of the plate through heating and cooling (such as annealing and aging).

(5) Surface treatment: remove surface impurities (sandblasting, pickling), and enhance the coating performance to ensure smooth and defect-free.

(6) Testing: Test strength, thickness, corrosion resistance, and other indicators to ensure that it is qualified and meets international standards.

Core: From smelting to finishing, each step strictly controls the temperature, composition, and process to ensure that the titanium alloy plate has high strength, corrosion resistance, and a high-quality surface, meeting high-demand scenarios such as aviation and medical.

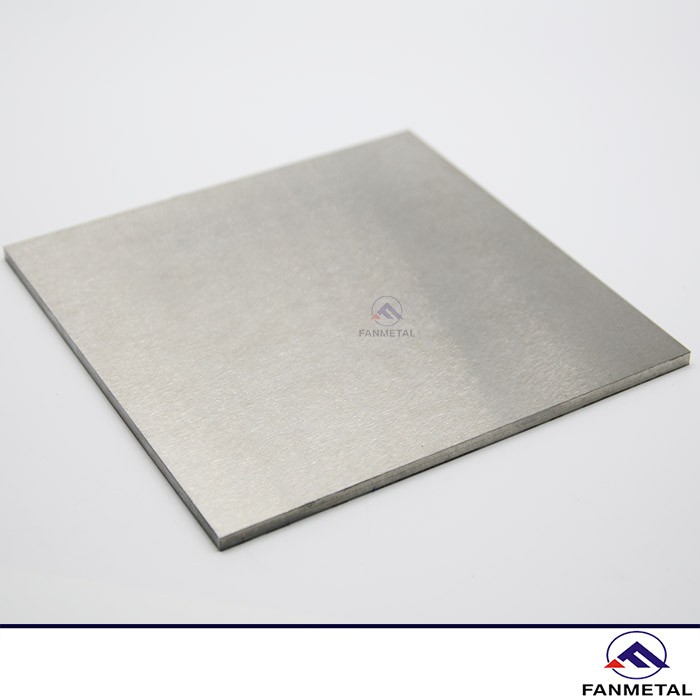

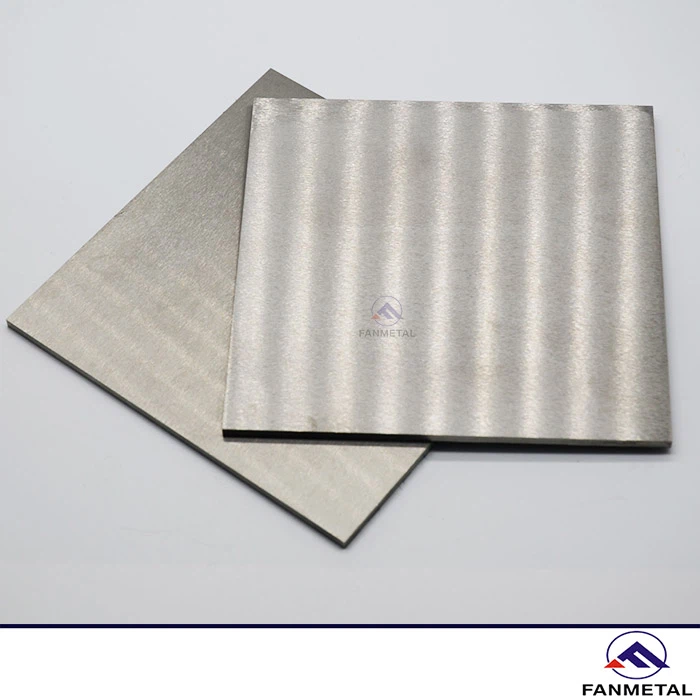

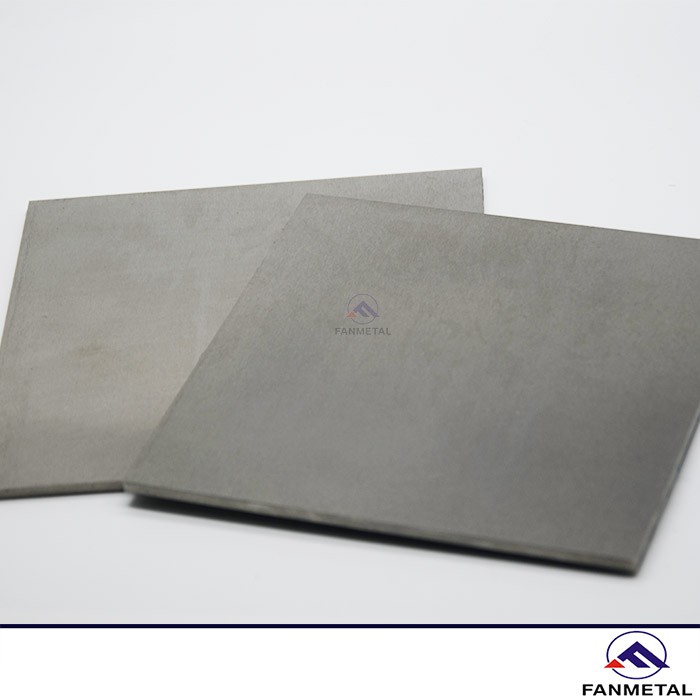

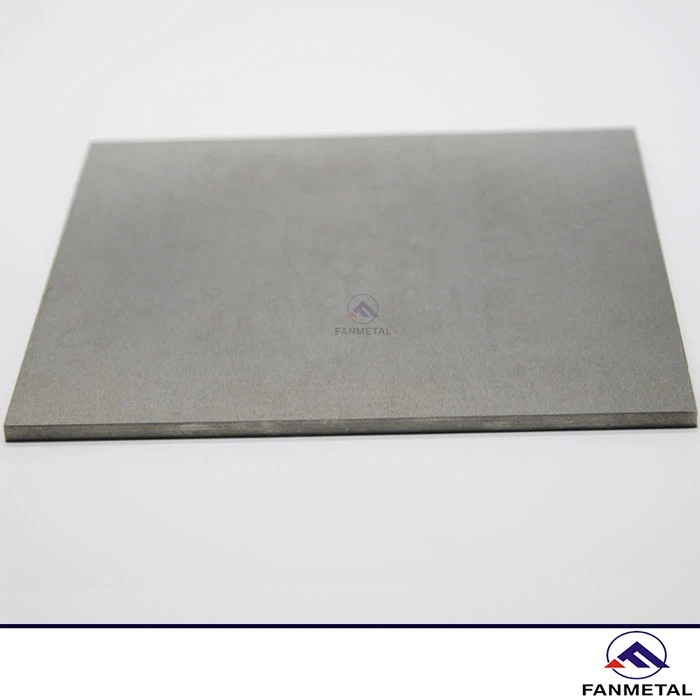

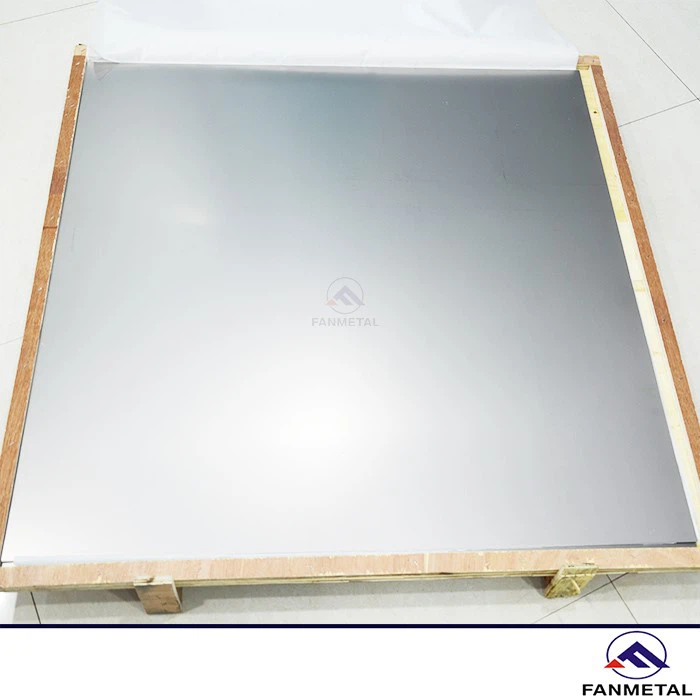

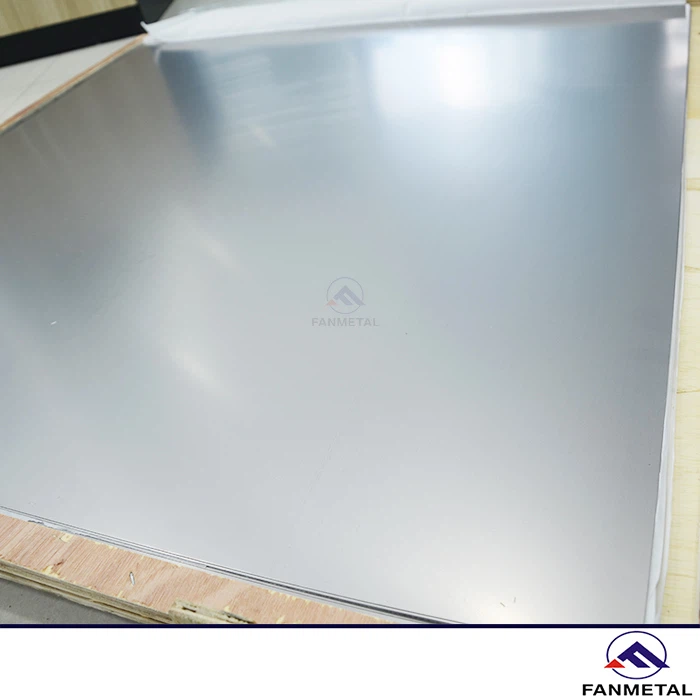

Titanium Sheet And Plate Pictures

Video

delivery Case

Powerful Solutions For Business Growth

请替换当前内容 Immigway Visa Consultancy was created to provide uniquely des igned premium services in the world of education and migration. As people are dreaming more. Immigway Visa Consultancy was created to provide uniquely des igned premium services in the world of education and migration. As people are dreaming more.

Eleganzo is a comprehensive design firm specializing in architecture,interior design,branded environments,strategic lanning,and urban design.

FAQ

Q: What is the Grade 5 titanium spec?

A: Grade 5 titanium (Ti-6Al-4V) is a high-strength titanium alloy with 6% aluminum and 4% vanadium. It offers excellent corrosion resistance, high specific strength (strength-to-weight ratio), and good biocompatibility. It conforms to ASTM B265, UNS R56400, DIN 3.7165 standards and is widely used in aerospace, medical, marine engineering, etc.

Q: What is the difference between Grade 5 and Grade 2 titanium plates?

A: Grade 5 (Ti-6Al-4V) is an alloy with higher strength and hardness for structural parts; Grade 2 is commercially pure with superior corrosion resistance for chemical equipment. Grade 5 is harder to machine but twice as strong as Grade 2.

Q: Is grade 4 or 5 titanium better?

A: Neither Grade 4 nor 5 is universally "better". Grade 4 (pure titanium) offers better ductility for cold forming and corrosion resistance; Grade 5 (Ti-6Al-4V) is stronger for high-load applications (e.g., aerospace, medical implants). Choose based on requirements.

Q: Is Grade 5 titanium difficult to machine?

A: Yes, Grade 5 titanium is challenging to machine due to its hardness and poor thermal conductivity, causing tool wear. Requires low speed, high feed rates, ample cooling, and carbide tools. Optimized parameters improve efficiency.

Q: Do you provide MTC (Material Test Certificates) with the order?

A: Yes, we provide EN 10204 3.1-compliant MTCs with every order, detailing chemical composition, mechanical properties, heat treatment, etc., ensuring traceability and compliance.

Q: Can you provide "Cut-to-Size" services for titanium plates?

A: Yes, we offer "Cut-to-Size" services using laser, waterjet, or plasma cutting with ±0.1mm precision and support complex shapes, reducing customer machining costs.

Q: Do you have a professional quality inspection certificate?

A: Yes, we have. Our company has ISO quality certifications for various products. You can order with confidence. We can provide a copy of the certificate if needed. If there are any quality issues after receiving the product, we offer high-quality after-sales service. If there's a transportation problem causing defects, we'll contact the express delivery to discuss a solution to minimize losses for both parties.

Q: What are your terms of payment?

A: Payment<=1000 USD, 100% in advance. Payment>=1000 USD, 30% T/T in advance, balance before shipment. If you have another question, pls feel free to contact us as below.
