Tungsten vs. Molybdenum: How to Choose the Right Metal for High-Temperature Furnaces?

In the design, operation, and maintenance of vacuum furnaces and high-temperature industrial furnaces, the selection of thermal field materials directly determines the service life, operating efficiency, and production safety of the equipment - whether it is the core heating element, the heat insulation screen, or the crucible carrying materials, its material performance is deeply bound to the production efficiency. As the core choice in the field of high-temperature furnace materials, tungsten and molybdenum are known as the "twin stars" of refractory metals, both of which have excellent high-temperature resistance, but there are significant differences in applicable scenarios, processing difficulty, and cost investment.

For overseas buyers and equipment engineers, how to make the best choice between the two according to the working conditions of their own high-temperature furnaces has become the key to improving equipment stability and controlling production costs. This article will comprehensively analyze the applicable scenarios for tungsten and molybdenum across multiple dimensions, including performance, processing, cost, and quality, and provide a professional reference for selecting high-temperature furnace materials.

1. Temperature Limits-Tungsten is chosen for ultra-high temperature applications, while molybdenum is chosen for conventional high-temperature applications.

Recrystallization brittleness refers to the rearrangement of grains in a material under long-term high-temperature conditions, which leads to a decrease in the material's toughness and makes it prone to fracture. This is also the main reason why ordinary refractory metals are prone to failure in high-temperature environments.

If your vacuum furnace or high-temperature industrial furnace operates at temperatures exceeding 2000℃, such as equipment used for sintering high-end materials or smelting precious metals, tungsten is the only option.

As the metal with the highest melting point in nature, tungsten maintains excellent structural stability and minimal deformation even in high-temperature environments above 2000℃. It is particularly suitable for manufacturing core heating elements (such as tungsten twisted wire and tungsten heating rods), effectively preventing material failure at high temperatures and extending the continuous operating time of the equipment.

Tungsten Filament Wire

Tungsten Rods

If your equipment operates at temperatures between 1100℃ and 1800℃, such as conventional vacuum brazing furnaces or powder metallurgy sintering furnaces, molybdenum or molybdenum alloys (lanthanum-molybdenum Mo-La, TZM alloys) are the most cost-effective options.

Conventional molybdenum has sufficient high-temperature resistance to cover this temperature range, and its cost is far lower than that of tungsten, making it suitable for manufacturing components such as heat shields, molybdenum boats, and support frames. It is particularly important to note that conventional molybdenum is prone to recrystallization brittleness under prolonged high temperatures. However, our supplied lanthanum-molybdenum (Mo-La) and TZM alloys, through special alloying treatment, can significantly increase the material's recrystallization temperature, effectively overcoming this problem, greatly extending the service life of components, and meeting the requirements for long-term high-temperature service.

Molybdenum Boat For Vacuum Evaporation

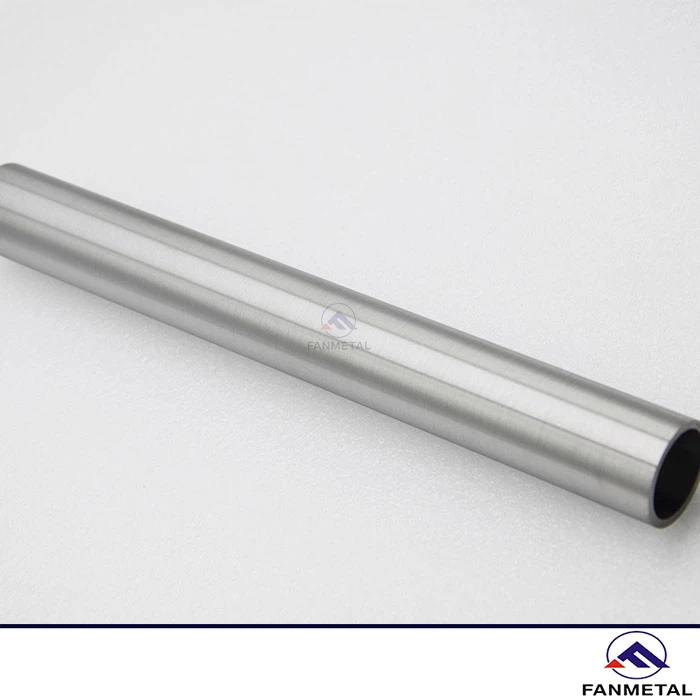

High Temperature Molybdenum Tubes

TZM Fasteners

Molybdenum Alloy Strip

2. Machinability & Geometry-Molybdenum is preferred for complex components.

The component design of high-temperature furnaces often includes complex structures, such as threaded fasteners, thin-walled heat shields, and large-area reflective screens. Molybdenum has better toughness, and its machinability is far superior to that of tungsten. It can easily achieve complex machining processes such as CNC milling, turning, and drilling, and can accurately machine various complex components such as threads, thin walls, and irregular shapes, such as molybdenum bolts and thin-walled heat shields.

3. Weight & Density Considerations-Large-scale equipment preferably uses a "tungsten + molybdenum" combination.

For large high-temperature furnaces, using tungsten as the sole heat exchanger material would significantly increase the equipment's weight, placing immense pressure on its load-bearing structure. This would not only increase manufacturing costs but also potentially affect operational stability and safety.

The "tungsten + molybdenum" combination is the optimal choice for large high-temperature furnaces. It effectively controls the overall weight of the equipment, reduces the pressure on the load-bearing structure, and balances cost and performance. This combination leverages the ultra-high temperature advantages of tungsten and the lightweight properties of molybdenum, achieving a perfect balance between performance and cost.

Tungsten Molybdenum Wire

Tungsten Molybdenum Rod

For overseas purchasing managers, material selection must not only consider performance compatibility, but also cost and return on investment (ROI).

• From the perspective of initial procurement costs, tungsten is much more expensive than molybdenum. Blindly choosing tungsten would significantly increase the initial investment in equipment. However, from the perspective of long-term operating costs, tungsten has obvious advantages. In ultra-high temperature environments, tungsten has a long service life and minimal deformation, which can effectively reduce equipment downtime, lower maintenance costs, and production losses, making it more economical in the long run.
• Molybdenum is the most cost-effective option for conventional high-temperature furnaces (such as vacuum brazing furnaces and powder metallurgy sintering furnaces). Its initial purchase cost is moderate, it can meet the high-temperature requirements below 1800℃, it is easy to process and maintain, and it is suitable for bulk purchase and long-term stable use.

As a supplier specializing in non-ferrous metal exports, we understand that quality compliance is a core prerequisite for overseas cooperation. Every batch of tungsten, molybdenum, and alloy materials we supply is accompanied by an MTC (Material Test Certificate) conforming to EN 10204 3.1, ensuring that the material properties are fully consistent with order requirements and directly meet market access requirements in the EU and most other regions globally.

To ensure product quality, we have established a comprehensive non-destructive testing system. Each batch of products undergoes rigorous testing, including:

• Chemical Composition Analysis: Utilizing X-ray fluorescence (XRF) or inductively coupled plasma (ICP) technology, we ensure the purity of tungsten and molybdenum materials is ≥99.95%, eliminating impurities that could affect the material's high-temperature performance.
• Vickers/Rockwell Hardness Testing: Accurately measuring material hardness to ensure the material meets processing and usage requirements.
• Ultrasonic Flaw Detection: Deeply inspects the material's interior to detect cracks, inclusions, porosity, and other internal defects, ensuring the material is free of internal flaws.
• Eddy Current Testing: Rapidly detecting surface and near-surface defects, ensuring the material's appearance and safety in use, especially suitable for testing pipes, wires, and other similar products.

Tungsten Boats For Evaporation, High Purity Tungsten Boats To Spain

Tungsten Molybdenum Wire, Molybdenum-Tungsten Alloy Wire To Germany

Moly Plate, Molybdenum Mo Plates To Denmark

TZM Moly Alloy Rods, Molybdenum High Temperature Alloy TZM Bar To Korea
