M5 Tungsten Bolt

Overview

M5 Tungsten Bolt is a standardized fastener made of pure tungsten or tungsten alloy material after powder metallurgy processing, which can be used in industrial and medical applications together with matching nuts. Its excellent density, melting point, and wear resistance allow it to play a good role in balancing counterweight, thermal conductivity, and shock absorption. FANMETAL can also provide customers with customized tungsten fasteners and has a more cost-effective price than other European and American suppliers. Please feel free to contact us if you need it.

Tungsten Bolts Characteristics

• The melting point is as high as 3410°C, which is much higher than that of ordinary steel, allowing it to maintain structural stability and mechanical strength in high-temperature and extreme environments.
• The high-density characteristics make it ideal for spacecraft counterweights, ensuring operational stability and flight safety through precise mass distribution.
• The high density also gives it excellent radiation shielding properties, which can effectively absorb X-rays and γ rays, and the shielding efficiency can reach more than 80%.
• High hardness and wear resistance extend the operating life of equipment using tungsten fasteners by 4-6 times, significantly reducing maintenance costs and downtime.
• It exhibits good corrosion resistance in harsh environments such as seawater, acid, and alkali, and is particularly suitable for the fastening needs of marine engineering and chemical equipment.
• Non-toxic, non-radioactive, can replace toxic lead products, waste parts can be recycled and processed without pollution, in line with the modern green manufacturing concept.

M5 Tungsten Bolt Dimension

PS: Purchasing suggestions

• Material selection: Pure tungsten (W1): purity ≥99.95%, suitable for high-temperature environments; tungsten alloys, such as W-Ni-Fe, improve toughness and machinability, suitable for situations requiring higher strength.
• Surface treatment: Untreated: suitable for high-temperature environments; maintain the material's natural color. Plating Treatment: If you need to enhance corrosion resistance, you can choose an appropriate coating.
• Specification Confirmation: Always confirm the thread pitch type (coarse or fine), length, and head shape when purchasing to avoid confusion with regular M5 bolts.

Tungsten Bolt Application

1. High-temperature industrial equipment
M5 Tungsten Bolt is widely used in high-temperature resistance furnaces, vacuum furnaces, single crystal furnaces, fiberglass production, and other equipment to secure wafer holders, heating elements, furnace structures, and temperature sensors to ensure connection reliability even in extreme temperatures.
2. Aerospace
Tungsten Alloy Balance Weights are used in key parts such as rocket engine nozzles and spacecraft counterweight systems, withstanding extreme temperatures and vibration environments, achieving precise mass distribution in a small volume, and significantly improving orbit control accuracy.y

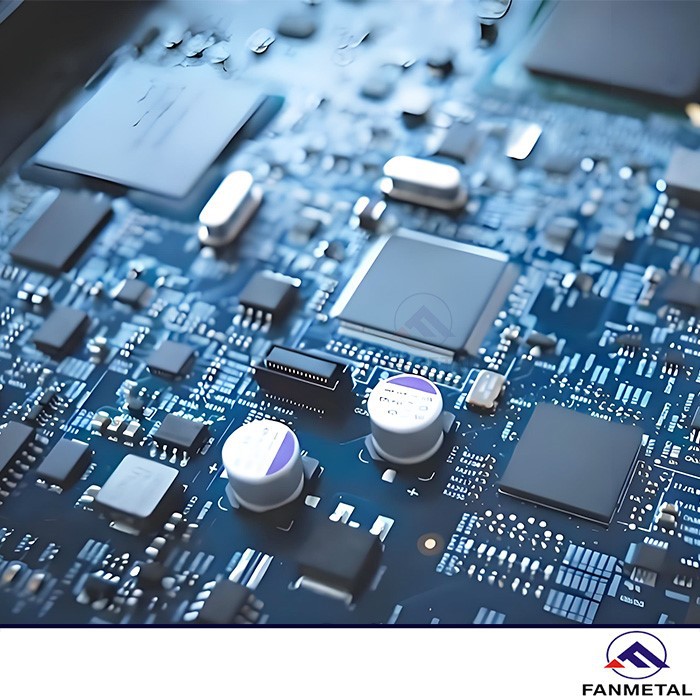

3. Electronics & Precision Equipment
It is used in precision equipment such as drone gimbals and industrial robot joints to balance counterweights to improve movement smoothness and control accuracy by optimizing weight distribution. It is also used for circuit board fixing, server rack heat sink fixing, and providing low-resistance connections to ensure signal transmission integrity.
4. Automotive industry
In high-end cars and racing cars, tungsten bolts are used to balance the counterweight of tires, allowing for weight distribution adjustment through their high-density properties, reducing vibration at high speeds. In addition, it is used to counterweight the engine crankshaft and suspension system to optimize vehicle handling performance.

5. Medical field
Tungsten Nuts and Bolts are used in CT scanners and medical linear accelerators to fix X-ray tube holders and collimators to ensure precise focus of the radiation beam. Its high-density properties effectively attenuate radiation, protecting medical personnel from radiation damage while providing precise support for surgical instrument joint connections.

6. Sports equipment weights
Bolts are embedded in the back of the clubhead in golf clubs to adjust the center of gravity of the swing and optimize distance and accuracy, providing ideal swing balance while maintaining a lightweight approach.

Process

It combines precision thread processing technology with special tungsten material processing technology, and ensures the reliable performance of products in extreme environments such as high temperature and high strength through powder metallurgy billet →making→ precision forming special heat treatment→ high-precision thread processing → surface strengthening treatment.

(1) Prepare high-purity tungsten powder, add a small amount of nickel, ir, on, and other metal elements as needed.

(2) The tungsten powder is pressed into blank strips by molding or the cold isostatic pressing method, and sintered at high temperature to improve the density.

(3) Use a sawing machine or cutting machine to cut off the bar material according to the design length, and the incision needs to be polished and smoothed.

(4) Rough turning of the bolt head and rod on the lathe, and a margin of 0.2-0.5mm is reserved for subsequent processing.

(5) The thread is cold-rolled and formed by the wire rolling machine, which can be used in three ways: radial rolling, tangential rolling, or rolling head rolling.

(6) Coating and grinding process on the surface to reduce surface roughness and ensure processing accuracy.

(7) Conduct comprehensive quality inspection, such as dimensional tolerance, mechanical properties, non-destructive testing, visual inspection, etc.

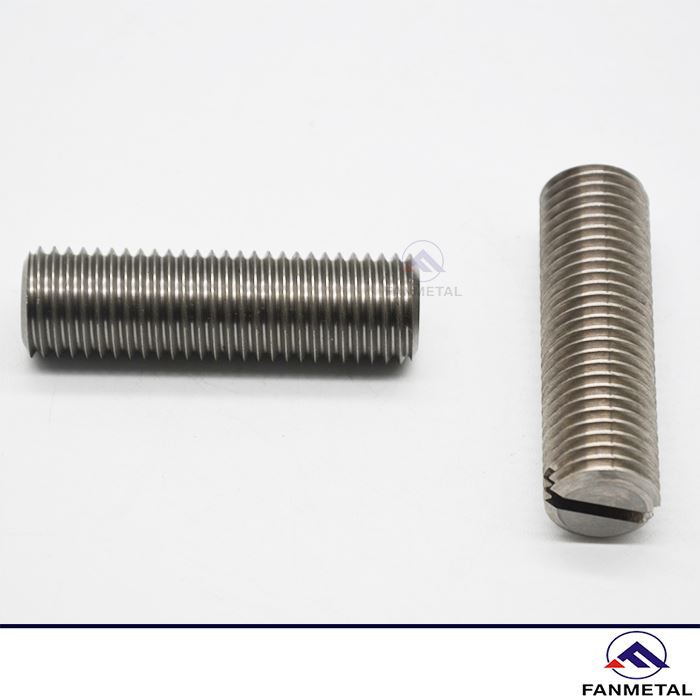

M5 Tungsten Bolt Pictures

Video

Why choose us

Company profile



FANMETAL TECH CO LTD is mainly engaged in the production and sales of tungsten alloy, molybdenum alloy, cemented carbide, sputtering target, titanium alloy, zirconium metal, Iridium, and Stellite. FANMETAL's main production, technical, and sales employees have 10-30 years of experience, with skillful mechanical processing, surface treatment, as well as finished products sales and customer service solutions. It can help customers solve various problems encountered during production and is used to improve efficiency.

01

High Quality

All products undergo comprehensive quality testing before shipment, and we can also provide customers with MTC certificates. Our company has also passed ISO9001 quality certification, so you can order with confidence.

02

Stable Supply Chain

We can provide customers with a one-stop service from product inquiry to customized production to after-sales support. Relying on the international logistics and transportation network, we guarantee that customers will receive the products intact within the delivery period.

03

Professional Team

Our technical and sales staff all have over ten years of work experience, can solve various problems encountered by customers, are familiar with the trade rules of various countries, and can promptly reply to customer emails 24 hours a day.

04

Custom Service

We can customize production according to customer-provided drawings, and strive to meet customer requirements in terms of processing technology and surface treatment. Of course, we can also provide standardized products.

Case

Tungsten Bolts, Tungsten Alloy Balance Weights To the Czech Republic

Recently, our company successfully shipped a batch of customized tungsten bolt counterweights to a well-known industrial customer in the Czech Republic, and this cooperation marks the further expansion of our company in the Central and Eastern European market. Previously, the customer used traditional steel counterweight bolts and faced problems such as insufficient density, insufficient precision, and short life, which increased operating costs and posed potential safety hazards. FANMETAL's technicians provide customized solutions, using high-purity tungsten as raw material and using advanced technology to control the bolt accuracy to ±0.01mm, effectively solving customer pain points. Customers highly recognize after testing and look forward to long-term cooperation.
