Molybdenum-Tungsten Alloy Metal Wire

Overview

Molybdenum-Tungsten Alloy Metal Wire is a superalloy material with molybdenum and tungsten as the main composition, with high melting point, high strength, excellent high-temperature resistance and electrical conductivity, commonly used grades such as MoW20, MoW30, etc., diameter range 0.03-1.8mm, widely used in electronic devices, aerospace, nuclear industry and other fields of high-temperature structural parts, electrode materials, cutting wires, etc., with good processability and reliability. FANMETAL has more than 20 years of professional experience in the production and export of non-ferrous metal products, and can provide customers with molybdenum and tungsten products with a high level of customisation ability and service attitude.

Tungsten Molybdenum Characteristics

Excellent physical properties

• It has a high melting point and can work normally under extremely high temperature conditions, far exceeding the scope of use of ordinary metal materials.
• Good thermal and electrical conductivity, and the thermal conductivity can reach 140W/(m·K) at room temperature.
• The low coefficient of thermal expansion is similar to that of semiconductor materials such as silicon, which helps to reduce thermal stress and improve device reliability.

Outstanding mechanical properties

• High hardness, good wear resistance, high strength, good toughness, avoid the brittleness problem of pure tungsten materials.
• It has excellent creep resistance at high temperatures and can maintain good dimensional stability for a long time.

Good chemical stability

• The alloy has excellent corrosion resistance to molten metals such as zinc, copper, aluminium, and certain corrosive media, especially in acidic environments.
• It has good oxidation resistance in the air, is not easy to rust, and is suitable for use in harsh environments.

Molybdenum-Tungsten Alloy Metal Wire Dimension

Molybdenum Tungsten Wire Application

1. Electronic lighting field
Low tungsten grade alloy wires are suitable for use as tube cathode holders/leads, incandescent/halogen lamp filaments and leads, small low-voltage heating elements, etc.
2. Industrial heating field
Molybdenum tungsten wire is often used in industrial electric furnaces or muffle furnace heating wire, thermocouple compensation wire, and heating elements of special heating equipment.
3. Vacuum equipment field
Conductive or heating elements are used in vacuum furnace sealing components, vacuum coater support wires, and vacuum testing equipment.
4. Semiconductor field
Tungsten Molybdenum Alloy wire has high dimensional accuracy and low coefficient of thermal expansion, and can be widely used as semiconductor chip packaging pins, precision components of wafer processing equipment, and conductive wire of vacuum coating equipment.
5. Aerospace field
High tungsten grade alloy wires are suitable for use as precision components in high-temperature engine areas, high-temperature resistant leads for aerospace equipment, heating elements for aviation special furnaces, etc., which can withstand high temperatures above 1000°C and have excellent creep resistance and wear resistance.
6. Nuclear industry or nuclear medicine
Tungsten has strong radiation resistance and strong chemical inertness, so alloy wires can also be used in nuclear reactor high-temperature component leads, precision high-temperature components of nuclear medicine equipment, and support wires for nuclear radiation detection equipment.

MoW Wire vs Molybdenum Wire vs Tungsten Wire vs Nickel Chromium Wire

products
key Words	Molybdenum tungsten wires	Pure Molybdenum wire	Pure tungsten wire	Nickel Chromium Wire
Core performance	Good oxidation resistance, creep resistance, wear resistance, and dimensional stability	Tensile strength 500-800MPa, excellent electrical and thermal conductivity, easy creep and deformation	High hardness, excellent electrical and thermal conductivity, but strong thermal brittleness	Tensile strength 400-600MPa, poor oxidation resistance
Processability	It can be adapted to multiple processes, such as welding and wire drawing, and is easy to process into precision wire	Excellent plasticity, easy processing, low moulding difficulty	It is hard, brittle, and easy to break, and cold processing is difficult	Excellent plasticity and easy processing
Cost-effectiveness	Strong adaptability to all scenarios and low comprehensive use cost	The raw material cost is low, the processing cost is low, and the overall cost is the lowest	The cost of raw materials is high, and the processing cost is extremely high.	Low cost but frequent replacement
advantages	It takes into account the processability of pure molybdenum and the high-temperature performance of pure tungsten, and is suitable for multiple working conditions	Easy processing, low cost, excellent conductivity	High temperature strength, creep resistance is Best, and ultra-high temperature resistance	Antioxidant and low cost
Typical Use	High-end manufacturing in all fields such as lighting, semiconductors, vacuum equipment, aerospace, etc	Basic low-temperature scenarios such as low-temperature heating, normal temperature conductivity, and ordinary electronic leads	Niche extreme high temperature scenarios, such as ultra-high temperature metallurgy and high-end aerospace ultra-high temperature components	Civil low-temperature heating and ordinary heating elements

*The above data are from internal test results and do not represent accurate data.

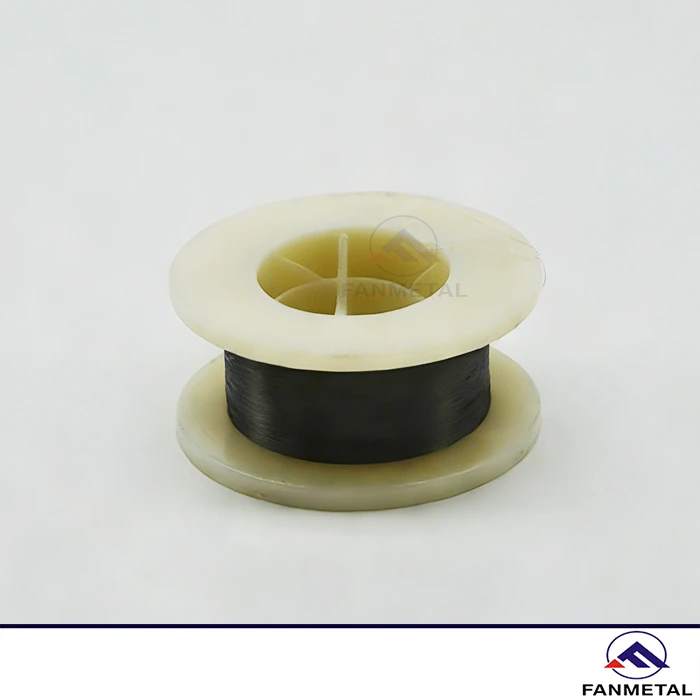

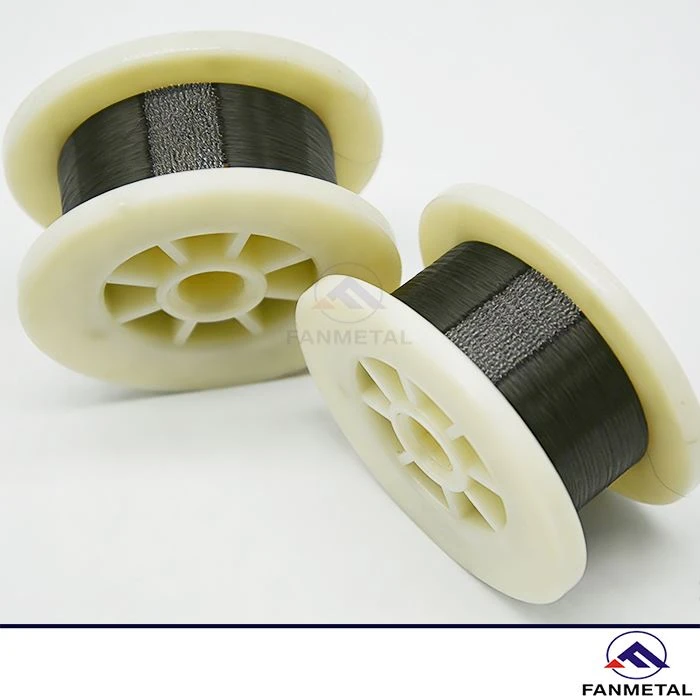

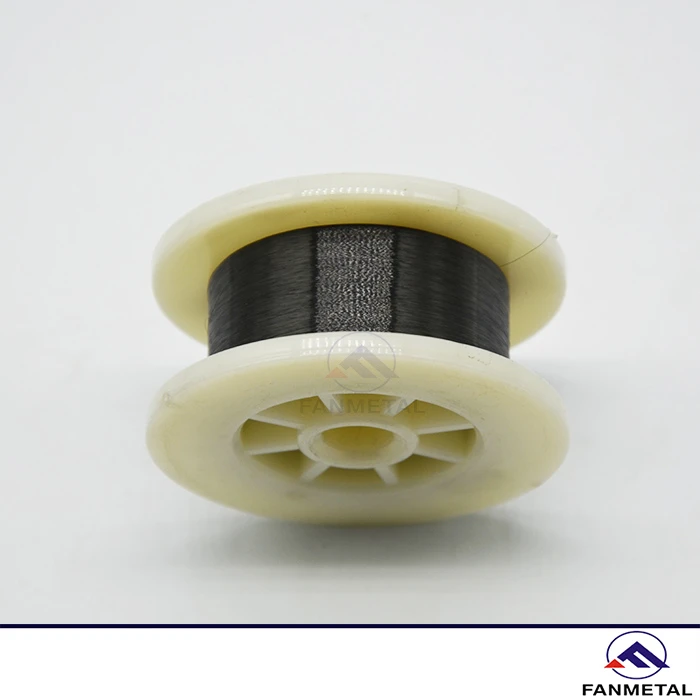

Molybdenum-Tungsten Alloy Metal Wire Pictures

Company profile



FANMETAL TECH CO LTD is mainly engaged in the production and sales of Tungsten alloy, Molybdenum alloy, cemented carbide, sputtering target, Titanium alloy, Tantalum zirconium, Iridium, and Cobalt alloy. FANMETAL's main production, technical and sales workers have over 10years experience in the field.



We have been supplying the related products to over 50 countries such as the USA, Canada, Mexico, Germany, France, Poland, Hungary, South Korea, Singapore, etc.



"Honesty, quality and efficiency " are the spirit of enterprise that the company

advocates. Based on honesty, we will make every effort to provide you with good quality, highly efficient products and the best services.

01

High Quality

The whole process quality control is carried out from raw material procurement to finished product inspection. And it has ISO 9001 quality certification and can also provide exclusive certifications in other regions according to customer needs.

02

Advanced Equipment

We have professional equipment like CNC machine tools, rolling machines, sintering furnaces, cutting machines, welding tools and surface treatment facilities. Our technicians can design drawings, customise production as per customer needs, and even travel overseas for on-site equipment installation.

03

Delivery guarantee

We can provide regular grades in stock, and large quantities and customised orders will be completed on time and within the agreed delivery period. All products are suitable for anti-oxidation and moisture-proof professional packaging for sea/air freight.

04

Custom Service

Our company can provide small specimens for free, and customise production according to customer drawings after the customer confirms the product quality, such as size specifications, surface treatment and other special requirements.

Related Case

Tungsten Molybdenum Wire, Molybdenum-Tungsten Alloy Wire To Germany

Recently, FANMETAL completed an order with a German manufacturer of precision electronic components for tungsten and molybdenum wire. Before using our wire, the customer faced the problems of insufficient dimensional accuracy, insufficient tensile strength, and a high wire breakage rate under high-frequency cutting. We have set up a special service team to give customised solutions, and customers have spoken highly of our product quality and delivery speed after accepting the products. The smooth delivery of this order not only demonstrates our company's technical strength in high-end tungsten-molybdenum alloy materials but also builds valuable experience in expanding the European high-end non-ferrous metal market.
