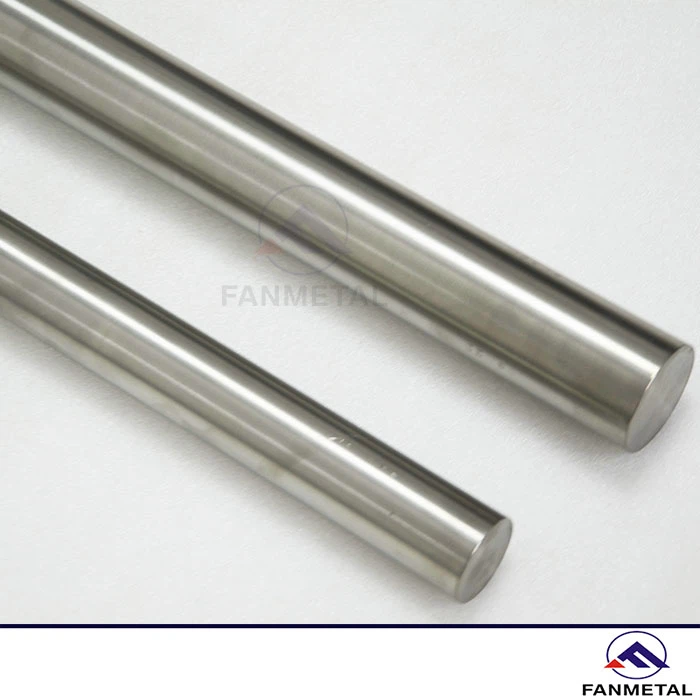

Zirconium Bar Stock
Overview
Zirconium Bar Stock is a key structural material made of zirconium metal with excellent corrosion resistance and good comprehensive mechanical properties. It plays an irreplaceable role in chemical equipment (especially moving parts such as stirring shafts and valve stems), nuclear reactors (core raw materials for fuel cladding tubes), medical equipment, aerospace, and other fields. Choosing the right grade (Zr702/Zr705) is essential to meet the corrosion resistance, strength, and cost requirements of specific applications. As a non-ferrous metal supplier with more than 20 years of professional experience, FANMETAL can also provide customers with high-quality zirconium plates, zirconium welding wires, and zirconium crucibles.
Characteristics
Excellent corrosion resistance
Zirconium has good tolerance to various acid and alkali solutions such as hydrochloric acid, sulfuric acid, and organic acids. Even when it is exposed to high-pressure water or steam at 300-400°C for a long time, its corrosion rate is extremely low.
Good high temperature stability
Zirconium has a melting point of 1852°C and is not easily melted at high temperatures. It also has good oxidation resistance (within a certain temperature range, the oxide film can prevent further oxidation), and maintains structural stability in extreme temperature environments.
Excellent nuclear performance
Zirconium has a weak ability to absorb neutrons and will not consume too many neutrons produced in nuclear reactions, so it can effectively maintain the continuation of nuclear fission chain reactions.
Good biocompatibility
Pure zirconium is non-toxic and non-irritating to human tissue and is not prone to allergic reactions. It can integrate well with human bones, is resistant to corrosion by body fluids, and has a long service life.
Dimension
|
Grade |
R60702 |
|
Purity |
99.2% |
|
Diameter |
5-200mm |
|
Length |
100-5000mm |
|
Density |
6.5g/cm3 |
|
Shape |
Round |
|
Surface |
Polishing, Grinding |
|
Standard |
ASTM B550,GB |
|
Certification |
ISO9001 |
Application
- In the nuclear industry, zirconium bar stock can be used as reactor structural components and fuel rod cladding, withstanding long-term corrosion in high-temperature, high-pressure water environments and ensuring the continued operation of chain reactions.
- In the chemical industry, it is used in the manufacture of heat exchangers, reactors, valves, pump shafts, and other components to handle highly corrosive media such as hydrochloric acid, sulfuric acid, and acetic acid, ensuring smooth chemical production.
- In the metallurgical industry, it can be used as a support structure for heating elements or as a protective sleeve for thermocouples in high-temperature furnaces, resistant to high-temperature oxidation and melt corrosion.
- In the aerospace industry, it is often used in high-temperature components such as rocket engine nozzle liners and support rods for high-temperature gas pipelines on spacecraft, withstanding the high temperatures generated by propellant combustion.
- In the medical industry, it is used in the manufacture of fracture fixation rods, spinal fusion cages, and connecting rods for artificial joints (such as hip and knee joints). It adheres well to human bone tissue, does not trigger immune rejection, and has a service life of decades.
- Instrumentation and metering can be used as a support structure or electrode rod for sensors in high-precision measuring instruments, leveraging their stability to reduce environmental interference.
- Marine engineering: In the corrosion-resistant pipe connectors of seawater desalination equipment and offshore drilling platforms, zirconium rods are used to manufacture key shafts or fasteners to resist long-term seawater corrosion.
Process
① Raw Material Preparation: Zirconium sponge is purified and then melted in a vacuum consumable arc furnace or electron beam melting furnace to remove gases and impurities, and then cast into uniform zirconium alloy ingots.
② Forging: The billet is first subjected to upsetting, followed by multiple forging passes to roll it into a bar blank close to the target diameter.
③ Heat Treatment: Annealing restores the material's plasticity and reduces its hardness, preparing it for subsequent rolling or stretching.
④ Rolling and Stretching: Multiple passes of hot and cold rolling further reduce the bar diameter, improving dimensional accuracy and surface quality.
⑤ Straightening: Pressure straightening or roller straightening is used to apply external force to slightly deform the bar in the opposite direction to ensure straightness.
⑥ Surface Treatment: Pickling, grinding, or polishing are performed to improve surface finish and extend service life.
⑦ Comprehensive Quality Inspection: Dimensional accuracy, mechanical properties, and non-destructive testing.

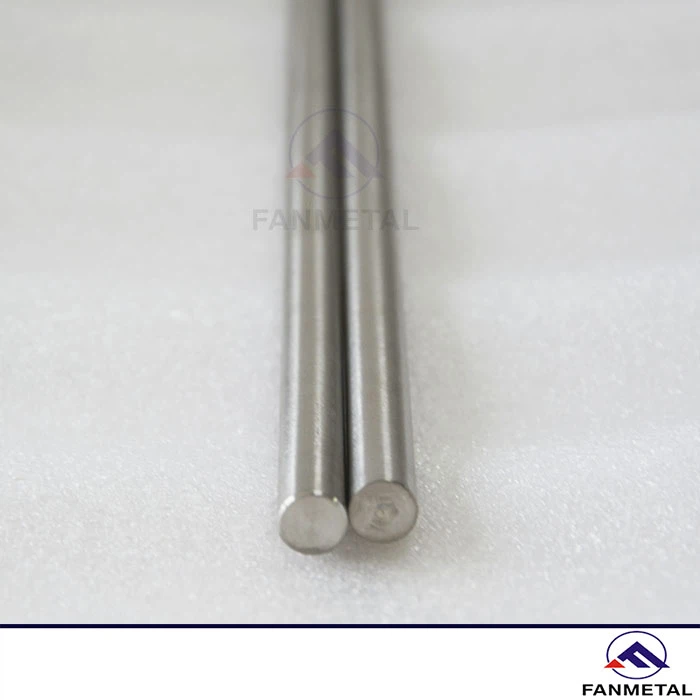

Pictures
Video
Why choose us
Product quality advantage
FANMETAL has advanced and complete testing equipment and a perfect quality management system. We conduct strict inspections on our products to ensure the high quality of our products. We also have an ISO9001 quality inspection certificate, so you can order with confidence.
High-Quality After-Sales Service
If you have any questions after receiving the product, please feel free to contact us. We will provide the best after-sales solution for customers based on the actual situation, and we can also give you a discount on your next order.
One-Stop Solution
After receiving the customer's inquiry, we will respond immediately to confirm the customer's needs, such as size specifications and order quantity, and then carry out a series of services such as quotation, customized production, quality inspection, packaging, delivery, after-sales, etc.
Global Shipping
We have established long-term partnerships with numerous international logistics companies, including DHL, UPS, FedEx, and SF Express, enabling us to deliver products to customers on time via land or air transportation.
Case

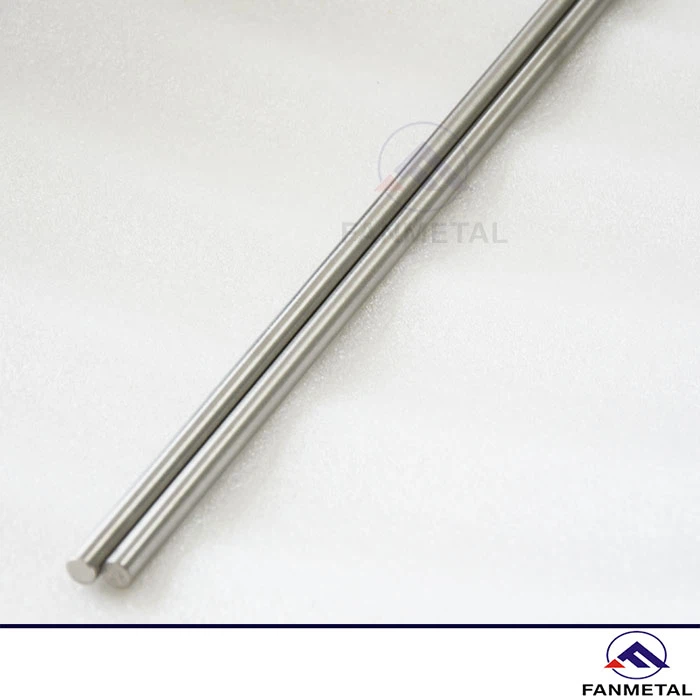

Zirconium Bar Stock, Zirconium 702 Rods, Pure Zirconium Metal Rod To Australia
In mid-September, the Zirconium 702 Rods produced by our company were safely delivered to Australian customers through international express delivery. The customer is very satisfied with the quality, price, and delivery speed of our products, and expressed his willingness to conduct technical discussions with us. communicate. Of course, our production equipment is also of high quality, and we have many years of production experience. Please trust us to provide our customers with the most suitable metal products. Our company is also constantly learning new professional knowledge and technology. If you have other needs for metal products such as tungsten, molybdenum, titanium, nickel, and zirconium, please feel free to contact us by email.
