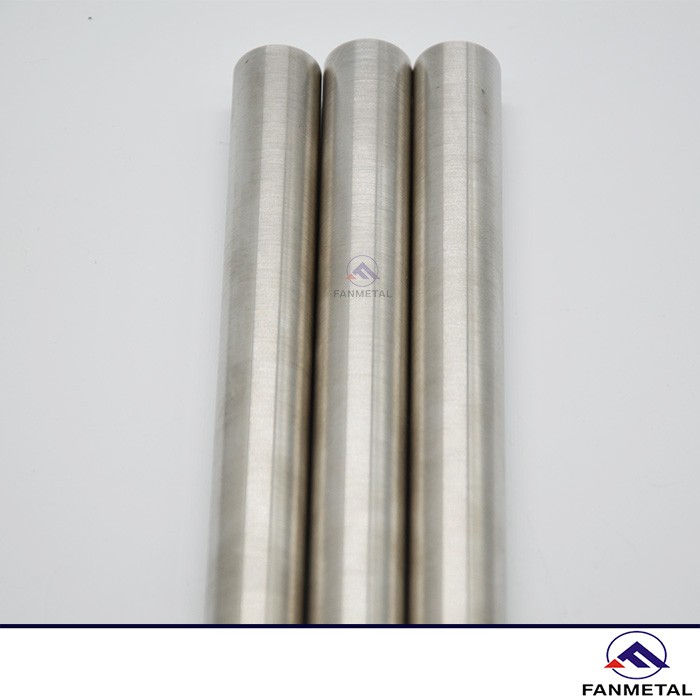

Cobalt 6B Rod Description

Material selection and processing

We use high-quality cobalt as the main component and add other metal elements such as nickel, chromium, tungsten and molybdenum to enhance the performance of the alloy. All raw materials have undergone high-temperature furnace melting, cooling and solidification in the mold, rolling and forging, heat treatment, surface polishing and quality inspection.

Characteristics

High hardness and excellent wear resistance: Due to the presence of hard phases such as tungsten carbide, it can still maintain a smooth surface under high-speed friction and heavy load conditions, greatly extending its service life.
High melting point, good high-temperature stability, low thermal expansion coefficient, not easy to soften and deform
Excellent corrosion resistance: The addition of chromium forms a dense oxide film on the alloy surface, which effectively prevents the invasion of corrosive media
Good biocompatibility, high toughness, ferromagnetism, long service life

Application

With its excellent physical and chemical properties, Cobalt 6B Rod can be widely used to make precision machining tools in mechanical equipment, valves and pipeline components in the petrochemical industry, engines and bearing components in the aerospace industry, artificial joints and other surgical implants in the medical field, as well as various fields such as automobile manufacturing, food processing and energy industries.

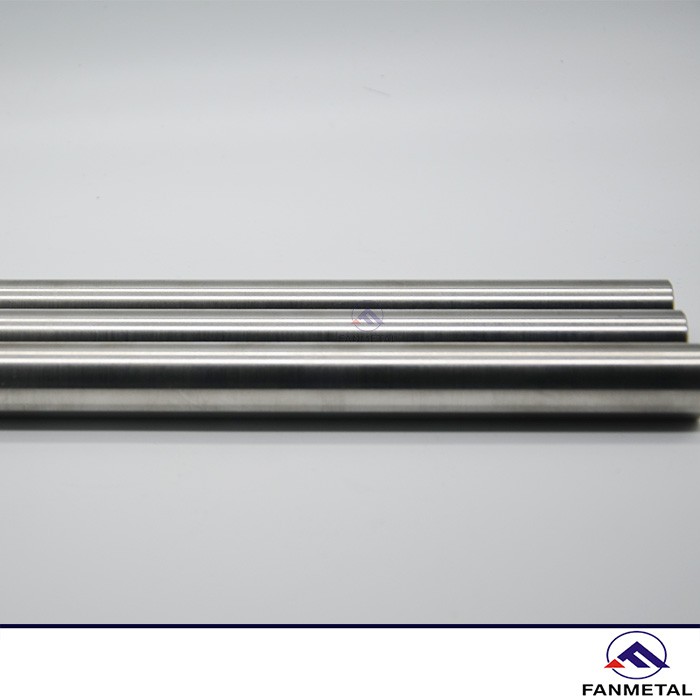

Alloy 6b Rod Information

Alloy 6b Rod, also known as stellite 6B rod, is a cobalt-based alloy known for its superior hardness, wear resistance and corrosion resistance. This alloy is widely used in industries with strict requirements for wear, heat resistance and chemical corrosion resistance. The composition of Stellite 6B mainly includes 27% to 32% chromium, 3% to 4% molybdenum, 1.4% to 2% carbon, 3% to 3.5% tungsten, 1% to 1.5% silicon and 1.5% to 2.5% iron. These ingredients make Stellite 6B have excellent wear resistance, impact resistance and corrosion resistance.

The uses of Stellite 6B include use in fluid valves, hot extrusion dies, high-temperature bearings, and applications to prevent erosion, wear and corrosion. Its chemical resistance makes it ideal for use in pumps, valves and other equipment in the chemical industry. In the aerospace industry, it is used for parts that are subjected to high stress levels, such as engine turbine blades, exhaust valves and injector parts.

Cobalt 6B Rod Parameter

Grade	Cobalt Alloy 6B
Purity	Co:61.5%;Cr:28-32%
Density	8.3 g/cm³
Size	Φ10-500mm
Length	≤2500mm
Hardness	38-42 HRC
Thermal Conductivity	24.9 W/mK
Thermal Expansion Coefficient	13.5 m/m°C
Shape	Round
Delivery Time	7-20 days
Standard	AMS 5894, DIN, ASTM, GB
Certification	ISO9001
