Inconel 600 Welding Wire
Inconel 600 Welding Wire Description
Inconel 600 Welding Wire is a corrosion and heat resistant alloy with excellent mechanical properties, offering an ideal combination of high strength and high ductility. Its strength comes from the strengthening effect of molybdenum and niobium on its nickel-chromium matrix, so it has high tensile, creep and fracture strength, excellent fatigue and thermal fatigue strength without precipitation hardening treatment. Inconel 600 Welding Wire also has excellent weldability and brazing, and plays an important role as a filler metal in TIG and MIG. It is a very important corrosion-resistant material to solve engineering corrosion problems that cannot be solved by general stainless steel and other metal or non-metal materials. wire material. Moreover, the alloy composition has a high carbon content, which enables Inconel 600 Welding Wires to be used in extremely low or high temperature environments, and is applicable in aerospace, power engineering, chemical, textile, petroleum and food industries.
Inconel 600 Welding Wire Specifications
|
Grade |
C |
Mn |
Si |
Cu |
S |
Cr |
Fe |
Ni |
N |
|
Inconel 600 |
0.15 max |
1.00 max |
0.50 max |
0.50 max |
0.015max |
14.00 – 17.00 |
6.00 – 10.00 |
72.00 min |
– |
|
Material |
Inconel 600 |
|
Technique |
Hot Rolled,Cold Rolled,Pickling,Sintering,Hot Forging,Annealing |
|
Diameter |
10 mm-100 mm |
|
Length |
100 mm-6000mm |
|
Density |
8.47g/cm3 |
|
Tensile Strength |
655MPa |
|
Yield Strength |
310MPa |
|
Shape |
Straight,Coil,Strip |
|
Surface |
Sand Blasting,Polished,Alkali Cleaning,Grinding,Chemical Cleaning,etc. |
|
Standard |
ASTM B166,GB |
|
Certification |
ISO9001 |

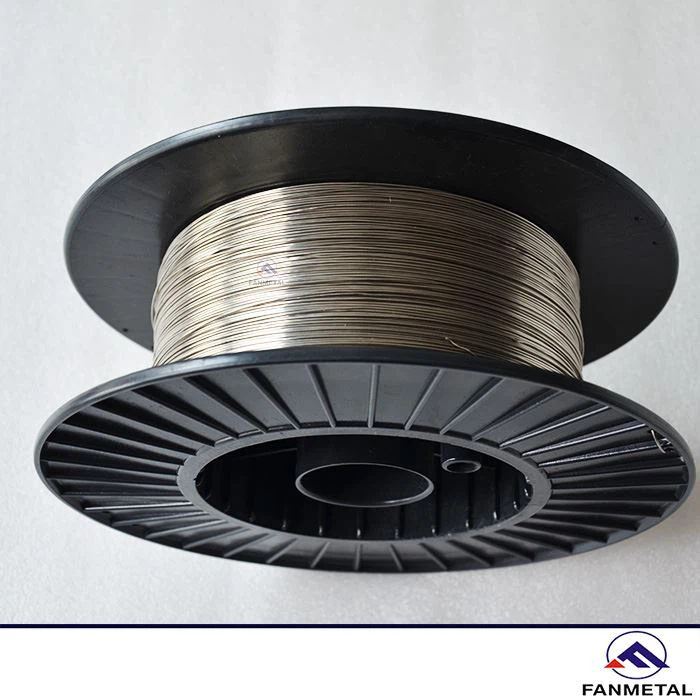

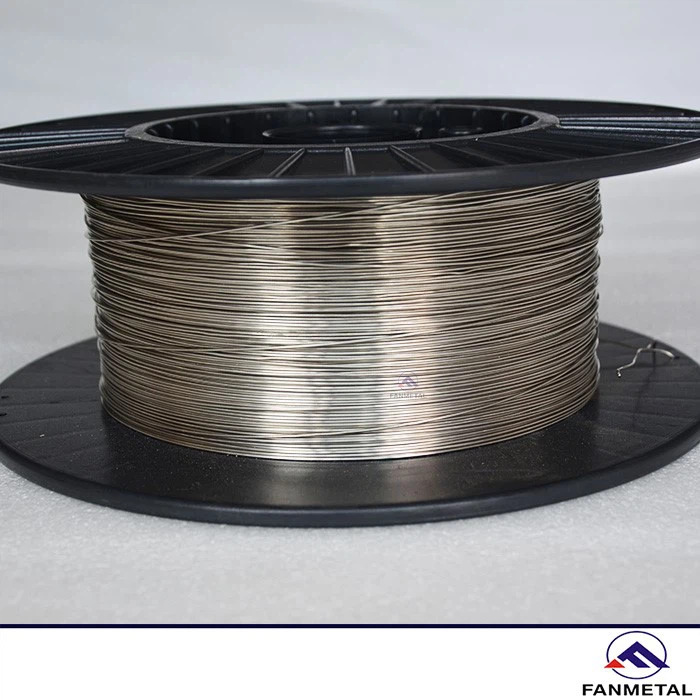

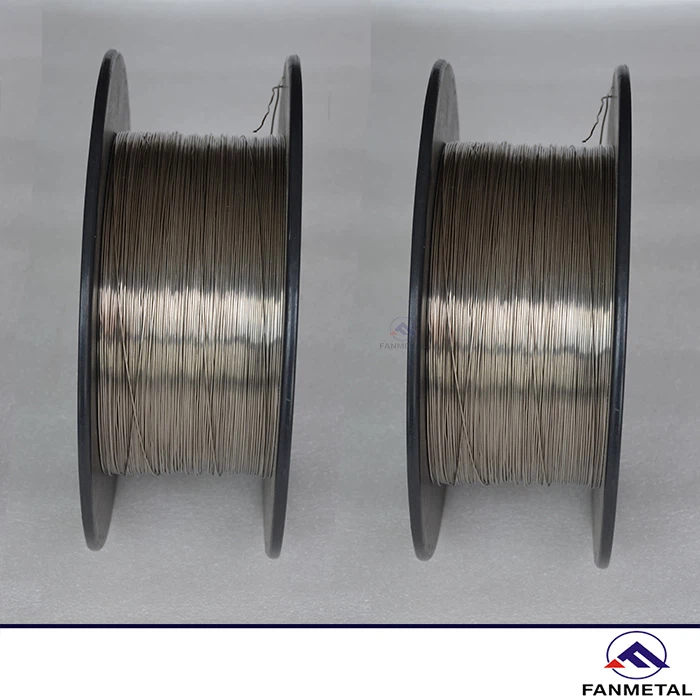

Inconel 600 Welding Wire Pictures:
