ASTM B564 Inconel 625 Flange
ASTM B564 Inconel 625 Flange Description
Inconel 625 is a nickel-chromium-molybdenum alloy. The higher the content of molybdenum, nickel, chromium and niobium in its composition, the better its corrosion resistance (pitting and crevice corrosion resistance, sensitization and intergranular corrosion) . ASTM B564 Inconel 625 Flange is a nickel-based alloy product that can withstand various harsh environmental conditions. It has high strength, good machinability, excellent corrosion resistance and pitting resistance, good oxidation resistance and cooling performance, and perfect finish. A series of advantages such as good weldability, superior formability and long service life. ASTM B564 Inconel 625 Flanges can generally be divided into weld neck flanges, blind flanges, threaded flanges, lap joint flanges and ring joint flanges, which are important accessories for connecting pipes. ASTM B564 Inconel 625 Flanges are suitable for use in nuclear reactors, marine instrument components, chemical processing equipment, aerospace, pollution equipment, pulp and paper industry, pharmaceutical equipment, thermal, nuclear and solar power plants, petrochemical and oil refineries, etc.
ASTM B564 Inconel 625 Flange Specifications:
|
Grade |
C |
Mn |
Si |
S,P |
Al |
Fe |
Ti |
Co |
Cr |
Mo |
Nb + Ta |
Ni |
|
625 |
0.10max |
0.50max |
0.50max |
0.015max |
0.40max |
5.0max |
0.40max |
1.0max |
20.0-23.0 |
8.0-10.0 |
3.15–4.15 |
58.0 min |
|
Grade |
Inconel 625 |
|
Type |
Blind Flanges,Weld Neck Flanges,Socket Weld Flanges,Screwed / Threaded Flanges,Reducing Flanges,Ring Type Joint Flanges,etc. |
|
Technique |
Hot rolled,Cold rolled,Cutting,Drilling,Machining,Grinding,Polishing |
|
Size(inches) |
1/8" NB to 48" NB |
|
Density |
8.47g/cm3 |
|
Surface |
Black,Acid Pickling,Polished,Bright |
|
Tensile Strength |
930 MPa |
|
Elongation |
40% |
|
Standard |
ASME B16.5,ANSI B16.47,DIN2527,BS4504,GB |
|
Delivery Time |
About 20 days |
|
Certification |
ISO9001 |

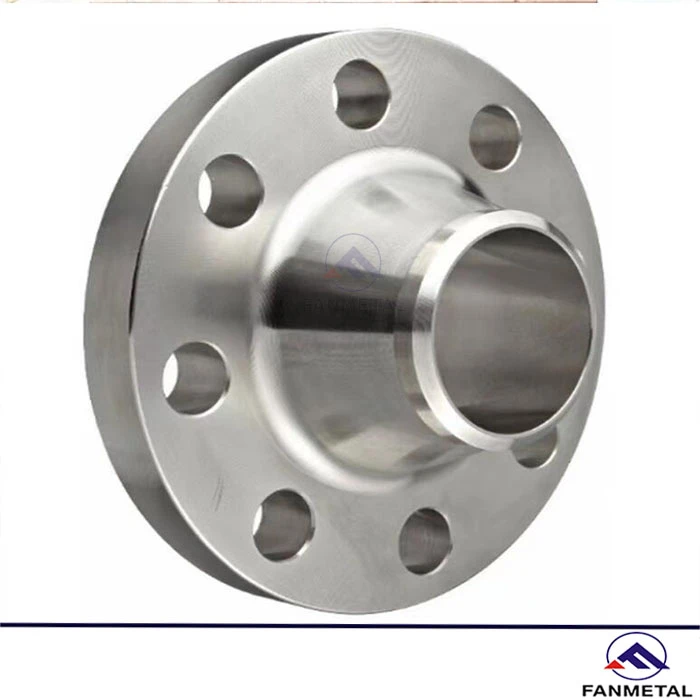

ASTM B564 Inconel 625 Flange Pictures:
