Tungsten Spot Welding Tip

Tungsten Spot Welding Tip Features

Tungsten Spot Welding Tip is often used as the electrode surface material of combined electrodes. It is mainly used to absorb excess heat, reduce arc and high-temperature corrosion, and extend service life to adapt to the performance requirements of welding different workpieces in the resistance spot welding process. Tungsten Spot Welding Tip has the characteristics of high melting point, high strength, resistance to fusion welding, wear resistance, high temperature resistance, easy conductivity, easy heat dissipation, long service life, and high welding precision. Tungsten Spot Welding Tip is often combined with copper to form an inlaid electrode and is widely used in various high-temperature welding fields such as arc welding, plasma welding, and electron beam welding.
The various high-quality tungsten copper products provided by our company can be widely used in aerospace, electronic engineering, national defense and military, automotive, metallurgical processing, petrochemical and medical industries, and have also passed various quality tests, so you can order our products with confidence product.

Generally, three methods can be used to make Tungsten Spot Welding Tip:
1. Back casting method: the electric extreme part and the rod part can be seamlessly combined, but the process is difficult and the cost is relatively high
2. Furnace welding: good solder joint quality, good dimensional stability, easy to mass production. However, the processing equipment is expensive and the welding preparation time is long
3. High frequency welding: suitable for small batch production, can be brazed large pieces. But the quality stability deviation, high operating skills

Tungsten Spot Welding Tip Specification:

Material:W70Cu30,W75Cu35

Purtity: Tungsten(50-90%)

Technique:Isostatic Pressing,Welding,Annealing,Rolling,Sintering

Density:17.75-19.0g/cm³

Size:Accept to Customized

Length:10mm-200mm

Surface:Polish,Grinding,Machining

Certification:ISO 9001

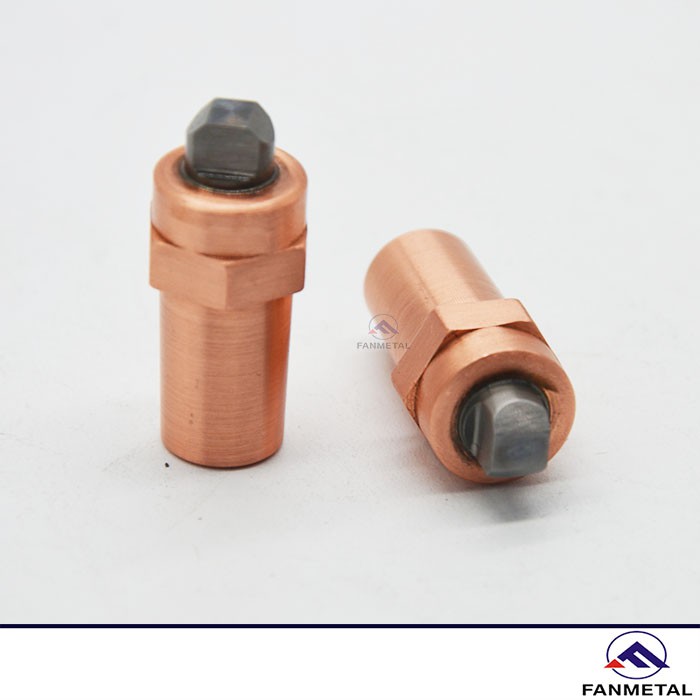

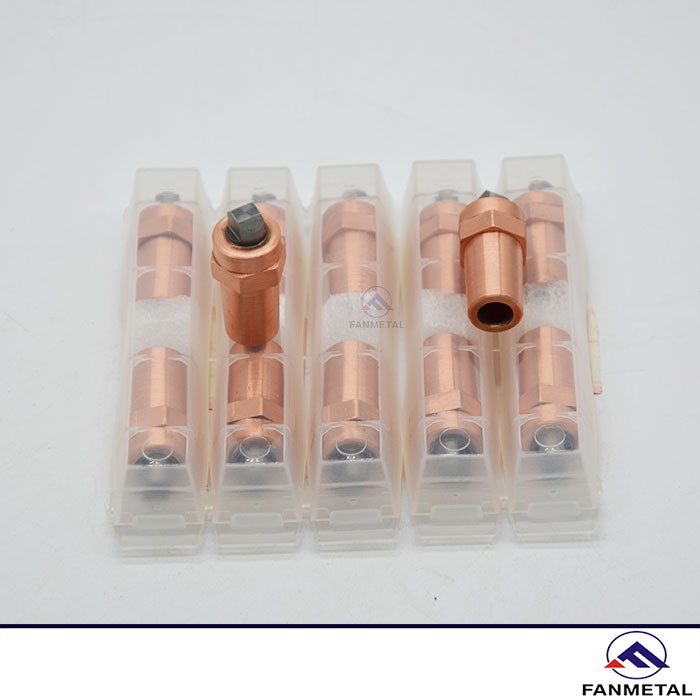

Tungsten Spot Welding Tip Pictures:

FAQ

Q:Are you manufacturer or trading company?

A:We are a manufacturer with professional technology and several years of production experience, and can provide customers with various high-quality products.

Q:What is your shipping cost?

A:This mainly depends on the weight, volume, the distance from the destination, and the size of the package.

Q:What's your delivery time?

A:After all the products are made, we will deliver it to you within about 25 days as soon as possible.

Q:Why should I choose your company to partner?

A:1. Have relatively mature production technology and experience and provide high-quality products.

2. Competitive price.

3. On the basis of the same price, the quality is reliable.

4. Produce according to customer's requirements and deliver in time.

5. Humanized after-sales service.
