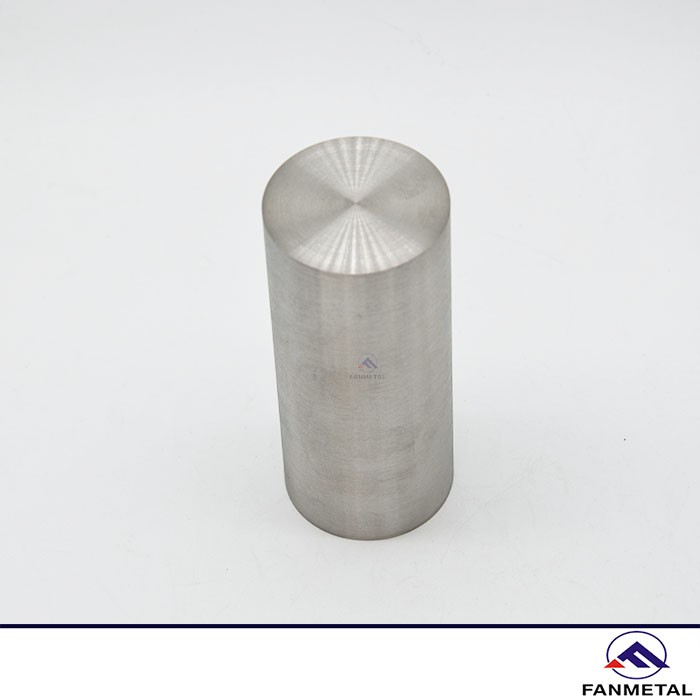

Tungsten Alloy Rod
Overview
High-density tungsten alloys can generally be divided into tungsten nickel iron and tungsten nickel copper. W-Ni-Fe is the most widely used type of tungsten alloy, used for counterweights (such as automobiles, aerospace), radiation shielding parts (medical, nuclear industry), armor-piercing cores, precision instrument parts, etc. W-Ni-Cu is suitable for scenes with non-magnetic requirements, such as magnetron parts, electronic packaging, non-magnetic counterweights in precision instruments, etc.
Tungsten Alloy Rod is an alloy material formed by adding metal elements such as nickel, iron, and copper to tungsten as a matrix. With its high density, high melting point, good mechanical properties (high strength and good toughness), excellent corrosion resistance, and oxidation resistance, it can be widely used as high-temperature resistant parts, balance weights, electrodes, mold materials, golf clubs, etc.
Characteristics
The extremely high density, usually between 16.5-18.75 g/cm³, is much higher than common metals such as lead and steel. It has a greater weight under the same volume, meeting the needs of counterweight and balance.
High dimensional stability and a low thermal expansion coefficient, small dimensional deformation when the temperature changes, and can maintain high precision for a long time after processing, which is suitable for scenes with strict dimensional tolerance requirements.
Excellent corrosion resistance, good resistance to corrosive media such as acid, alkali, salt, etc., at room temperature, superior to many metal materials (such as steel is prone to rust), suitable for use in harsh environments.
Outstanding high temperature resistance, with a melting point as high as 3422℃. It can maintain high strength and stability above 1000℃, which is much higher than the heat resistance limit of materials such as steel and aluminum alloy.
Excellent mechanical properties, high tensile strength, good plasticity, can withstand large impact force and load, not easy to deform or break, can be processed by cutting, grinding, forging, etc.
Dimension
|
Material |
W-Ni-Fe & W-Ni-Cu |
|
Purity |
90%-97% |
|
Diameter |
2-100mm |
|
Length |
50-1000mm |
|
Electrical Conductivity |
14-17%(IACS) |
|
Density |
16.5-18.75g/cm3 |
|
Surface |
Polishing, Milling, Grinding |
|
Delivery Time |
15-20 days |
|
Standard |
ASTM B777, MIL-T-21014, GB |
|
Certification |
ISO 9001 |
Application
- Aerospace: Mainly used for gyroscope balance weights in inertial navigation systems of aircraft and satellites, high-temperature and high-pressure components such as rocket engine nozzles and combustion chamber linings, structural counterweights, or shock-absorbing components.
- Defense: Used for armor-piercing projectile cores, and can also be used for counterweights of torpedoes and submarines to adjust buoyancy and center of gravity.
- Welding: Tungsten Alloy Rod (especially those containing rare earth elements such as cerium and thorium) is resistant to high temperatures and has stable arcs. It is the core electrode material for TIG welding and is widely used in precision welding of stainless steel, aluminum alloys, etc.
- High-temperature furnace industry: As a heating body, support rod, or furnace structure of a high-temperature furnace, it is suitable for scenes such as ceramic sintering and metal smelting.
- Metal processing: Used as a core material for manufacturing die-casting molds and wear-resistant tools (such as drill bits and cutters), suitable for processing high-strength alloys.
- Precision instruments: Used as a counterweight in balances, instruments, and clocks to ensure measurement accuracy.
Process
① Use high-purity tungsten powder and binder powders such as nickel, iron, and copper to ensure uniform mixing (the ratio is generally W:Ni:Fe=90:7:3 or 93:4.5:2.5, etc.).
② Load the mixed powder into an elastic mold and press it into shape to obtain a rod-shaped blank with high density, which is suitable for large-sized or complex-shaped bars.
③ High-temperature sintering, the binder melts and wets the tungsten particles to form a dense alloy.
④ Turning, grinding, and wire cutting, cut into fixed lengths according to needs, and the cuts must be flat.
⑤ Through multi-directional forging, the material undergoes plastic deformation, refines the grains, and improves the bending strength.
⑥ Low-temperature annealing of the bars after rotary forging to eliminate processing stress, stabilize the size, and avoid subsequent processing deformation.
⑦ Chemical polishing and electroplating to improve surface finish and extend service life.
⑧ Comprehensive testing and quality control, such as dimensional accuracy, performance testing, and non-destructive testing.
Pictures
Video
Why choose us
Excellent Customized Services
We can customize production to match the customer's drawings, and we are also capable of designing and processing in accordance with the customer's requirements. Whether it's a unique design or specific technical specifications, we are dedicated to delivering exactly what our customers envision.
One-Stop Solution
After receiving the customer's inquiry, we will respond immediately to confirm the customer's needs, such as size specifications and order quantity, and then carry out a series of services such as quotation, customized production, quality inspection, packaging and delivery, after-sales, etc. It is our responsibility to let customers have no worries.
24H Online Service
Upon receiving customer inquiries, we promptly and accurately ascertain the product they require, ensuring there are no issues related to time differences. Our customer service team operates around the clock, ensuring that no matter where our customers are located, they receive the same level of attention and service.
Global Shipping
We have established long-term cooperation with many international logistics companies, such as DHL, UPS, FedEx, and SF Express, and can deliver products to customers on time by land or air transportation. We can effectively avoid trade barriers, shorten the delivery cycle, ensure the safety and on-time arrival of goods, and significantly reduce operating costs and improve customer satisfaction.
Case
Tungsten Alloy Rod Bar, Tungsten Nickel Iron Rod To Netherlands
Recently, as a professional supplier of non-ferrous metal products, we have successfully sent a batch of high-quality Tungsten Alloy Rods to Dutch customers. This move not only marks a solid step forward in our cooperation with international customers, but also fully demonstrates our professional strength and product advantages in the field of non-ferrous metal products. As a high-performance non-ferrous metal product, Tungsten Nickel Iron Rod plays an irreplaceable and important role in many industrial fields. The products we supply to Dutch customers this time use tungsten raw materials with high purity and stable performance to ensure the excellent quality of the products from the source. Especially in terms of production technology, we have advanced powder metallurgy technology with professional technical teams and equipment. At the same time, each link has precise parameter settings and strict quality control to ensure that the produced rods have high dimensional accuracy and excellent mechanical properties.
Product qualification
