Tungsten Copper Seam Weld Wheel
Tungsten Copper Seam Weld Wheel Description
Tungsten-copper alloy is a kind of composite metal material combined with high-purity tungsten powder and high-conductivity copper powder, which is refined by static pressure forming, high-temperature sintering and melting process. Tungsten Copper Seam Weld Wheel belongs to the tungsten copper electrode material, mainly an electrode wheel installed on the seam welding machine, which has high hardness, good wear resistance, excellent electrical and thermal conductivity, good mechanical wear resistance, and Strong corrosion resistance, good creep resistance and long service life. Among them, the stable internal structure is beneficial for Tungsten Copper Seam Weld Wheel to maintain its own shape in the welding process, so as to maintain the production uptime and processing accuracy, and achieve low roughness and high surface quality. Tungsten Copper Seam Weld Wheel can allow more concentrated sparks, better precision and tighter tolerances, suitable for welding materials such as silver, copper, aluminum, stainless steel mesh and barbed wire.
Tungsten Copper Seam Weld Wheel Specifications:
|
Material |
W70Cu30,W75Cu25 |
|
Technique |
Forging,Sintering,Annealing,Rolling,HIP,Machining,Injection Molding process |
|
Outer Diameter |
50-175mm |
|
Length |
10mm-2000mm |
|
Inner Diameter |
10-60mm |
|
Height |
5-40mm |
|
Conductivity(%IACS) |
35-50 |
|
Density |
14.1-15.3g/cm3 |
|
Surface |
Polished,Bright,Chemical Cleaning,Black Oxide,etc. |
|
Shape |
Round |
|
Standard |
ASTM B702,GB,JIS |
|
Certification |
ISO9001 |
|
Material |
W70Cu30,W75Cu25 |
|
Technique |
Forging,Sintering,Annealing,Rolling,HIP,Machining,Injection Molding process |
|
Outer Diameter |
50-175mm |
|
Length |
10mm-2000mm |
|
Inner Diameter |
10-60mm |
|
Height |
5-40mm |
|
Conductivity(%IACS) |
35-50 |
|
Density |
14.1-15.3g/cm3 |
|
Surface |
Polished,Bright,Chemical Cleaning,Black Oxide,etc. |
|
Shape |
Round |
|
Standard |
ASTM B702,GB,JIS |
|
Certification |
ISO9001 |
|
Material |
W70Cu30,W75Cu25 |
|
Technique |
Forging,Sintering,Annealing,Rolling,HIP,Machining,Injection Molding process |
|
Outer Diameter |
50-175mm |
|
Length |
10mm-2000mm |
|
Inner Diameter |
10-60mm |
|
Height |
5-40mm |
|
Conductivity(%IACS) |
35-50 |
|
Density |
14.1-15.3g/cm3 |
|
Surface |
Polished,Bright,Chemical Cleaning,Black Oxide,etc. |
|
Shape |
Round |
|
Standard |
ASTM B702,GB,JIS |
|
Certification |
ISO9001 |

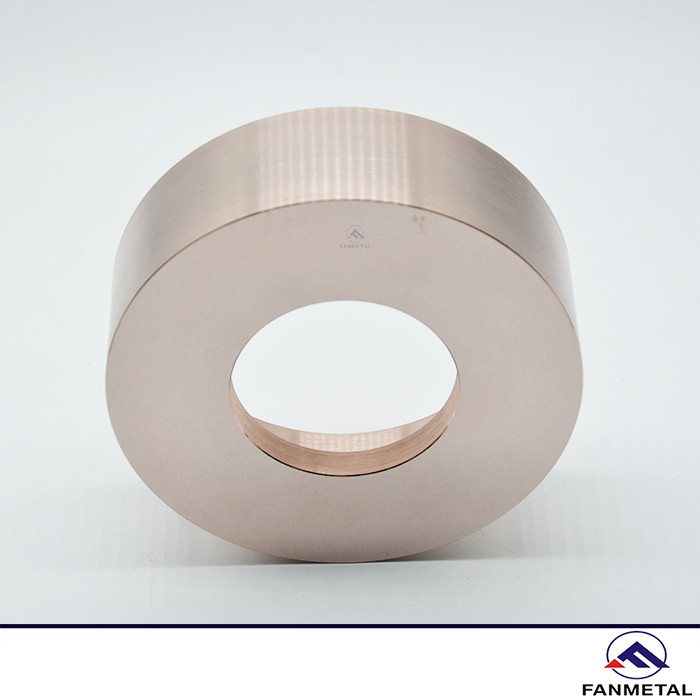

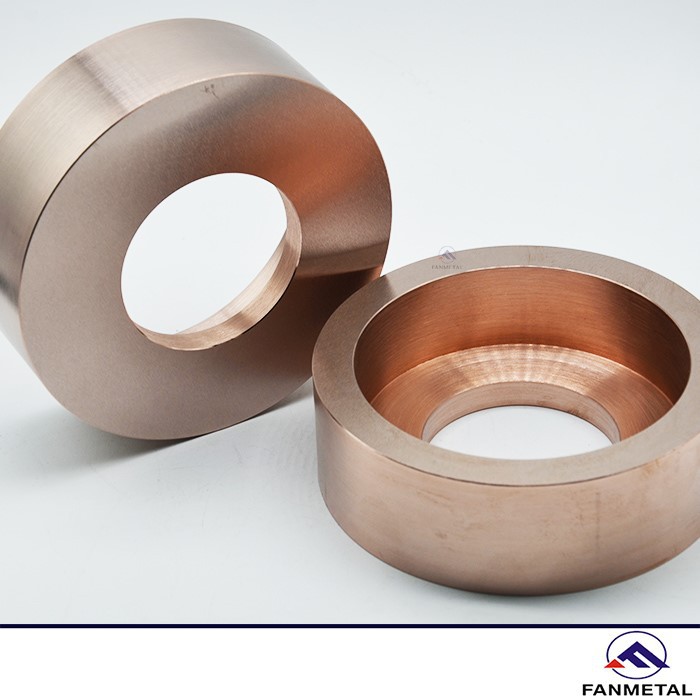

Tungsten Copper Seam Weld Wheel Pictures:
