Spot Welding Electrodes
Overview
Spot Welding Electrodes are high-performance electrodes manufactured from tungsten-copper composite materials via powder metallurgy and diffusion bonding processes. They combine high-temperature resistance, arc erosion resistance, superior electrical and thermal conductivity, and low adhesion properties. Widely employed in automotive manufacturing, aerospace, electronics, and electrical industries, these electrodes facilitate resistance spot welding of high-strength steels, aluminium alloys, and precision components.
As a welding electrode manufacturer, FANMETAL possesses over two decades of specialised expertise. Our in-depth research into metallic materials, including tungsten alloys, molybdenum alloys, titanium alloys, and nickel alloys, enables us to effectively address customer requirements. Choosing us represents the most cost-effective solution.
Welding Electrode Technical Parameters
| Grade | W | Cu | Features |
|---|---|---|---|
| W50Cu50 | 50% | 50% | Good electrical conductivity, moderate hardness, suitable for medium-strength welding |
| W60Cu40 | 60% | 40% | Enhanced high temperature resistance for higher currents |
| W70Cu30 | 70% | 30% | High hardness and strong resistance to deformation, suitable for high-load welding |
| W80Cu20 | 80% | 20% | Excellent wear resistance but slightly lower conductivity for precision spot welding |
| W50Cu50 | W60Cu40 | W70Cu30 | W80Cu20 | |
|---|---|---|---|---|
| Density (g/cm³) | 11.5–12.0 | 12.5–13.0 | 13.5–14.0 | 14.5–15.0 |
| Hardness (HV) | 80–100 | 100–120 | 120–140 | 140–160 |
| Conductivity (%IACS) | 40–50 | 30–40 | 20–30 | 10–20 |
| Thermal conductivity (W/m·K) | 180–200 | 150–170 | 120–140 | 90–110 |
| Operating temperature (°C) | ≤800 | ≤900 | ≤1000 | ≤1100 |
| Sizes of welding electrodes |
Dia:3-20mm Length:50-150mm |
| Shape | Cylindrical/flat/cone/special-shaped |
| MOQ | 5PCS |
| Surface | Polishing, Grinding |
| Delivery Time | 20-30DAYS |
| Standard | ASTM B702, GB/T 8320 |
| Certification | ISO 9001 |
Tungsten Copper Electrode Characteristics
- Tungsten has a high melting point and excellent high-temperature resistance, maintaining structural stability under high-temperature arcs and resisting softening and deformation.
- Copper provides excellent electrical and thermal conductivity, resulting in high current transmission efficiency, rapid local heat dissipation, and low energy loss.
- The unique evaporative cooling effect of copper, where it absorbs heat through evaporation at high temperatures, further reduces electrode temperature and enhances thermal stability.
- High hardness and strong wear resistance make it suitable for various harsh welding environments and ensure a long service life.
- The low coefficient of thermal expansion minimises thermal deformation, resulting in high welding precision.
- Good anti-adhesion properties prevent sticking to the workpiece material, reducing spatter and lowering cleaning frequency.
Resistance Welding Electrodes Use
- Automotive Manufacturing Sector: Vehicle bodies are typically constructed from high-strength steel and aluminium alloy components. Spot Welding Electrodes are employed for repairing and welding bodywork, critical structural elements such as chassis and frames, as well as precision electronic components, including airbag sensors.
- Aerospace Sector: They are employed for joining difficult-to-weld materials such as titanium alloys and nickel-based high-temperature alloys, which are extensively utilised in aircraft engines, airframe structures, and spacecraft components. Their high-temperature resistance (up to 3000°C) ensures the safe operation of spacecraft in extreme environments. Particularly in manufacturing precision components for aircraft fuel and hydraulic systems, tungsten-copper electrodes ensure the strength and reliability of welded joints, meeting the stringent requirements of the aerospace sector for components.
- Electronics Manufacturing: Tungsten Copper Electrodes are employed for welding lead frames, semiconductor chips, high-density circuit boards, capacitors, resistors, transistors, and other electronic components. Their high precision and stability ensure the reliability of electronic products.
- Special Material Welding: Suitable for welding difficult-to-weld materials such as high-chromium stainless steel, duplex stainless steel, pure titanium and titanium alloys, nickel-based and cobalt-based high-temperature alloys.
- Precision Mould Manufacturing: They serve as an electrode for electrical discharge machining (EDM) to process moulds made from high-hardness materials such as cemented carbide and hardened steel.

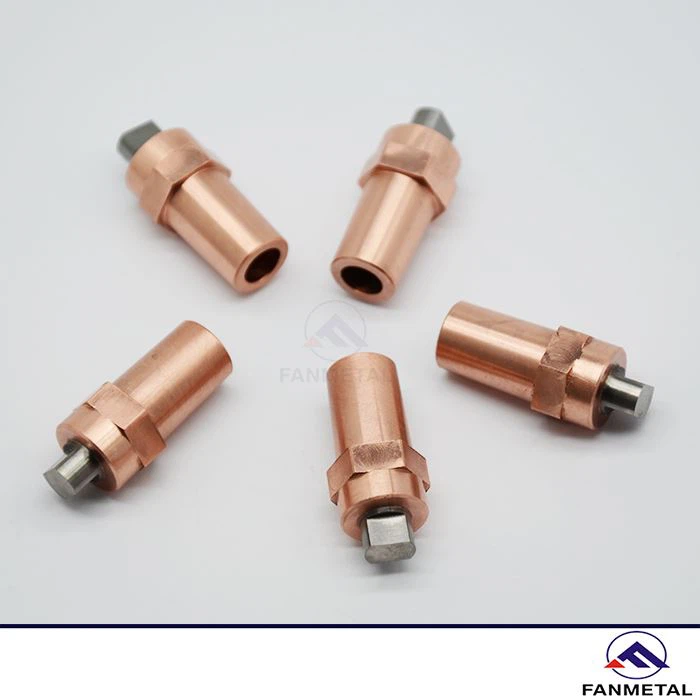

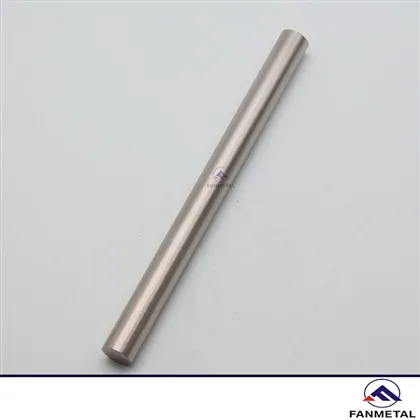

Spot Welding Electrodes Pictures
