Tungsten Carbide Wire Drawing Die
video
Tungsten Carbide Wire Drawing Die

Tungsten Carbide Wire Drawing Die

Tungsten Carbide Wire Drawing Die Description Tungsten carbide wire drawing die is a widely used and low cost material in tungsten carbide die. Tungsten carbide wire drawing dies are mainly made of high-quality tungsten carbide powder, with high temperature resistance, impact resistance, high...
Send Inquiry
Product Details ofTungsten Carbide Wire Drawing Die

Tungsten Carbide Wire Drawing Die Description

Tungsten carbide wire drawing die is a widely used and low cost material in tungsten carbide die. Tungsten carbide wire drawing dies are mainly made of high-quality tungsten carbide powder, with high temperature resistance, impact resistance, high toughness, high strength, high elastic modulus, high bending strength, high wear resistance and cost-effective quality. Tungsten carbide wire drawing dies provided by FANMTEA have the advantages of low energy consumption, good thermal conductivity, high polishing performance, no cracks on the surface and good production capacity. Customers are welcome to come and order.

Tungsten Carbide Wire Drawing Die Application

Tungsten carbide wire drawing dies are ideal for drawing metal wires, tubes and bars such as stainless steel, tungsten, molybdenum, aluminum or copper. Moreover, tungsten carbide wire drawing dies can also be used to draw wires in high-precision instruments such as radar, aerospace equipment, instrumentation, electronic devices and scientific research equipment.


Tungsten Carbide Wire Drawing Die Specifications:

Grade

YG6,YG8,S11,S13,S40,S60

Purity

W:85%,Co:15%

Technique

Pressing,Hot-rolled,Cold-rolled,Welding,Punching,Forging

Diameter

1mm-60mm

Thickness

0.2-5.0mm

Hole Range

0.1mm-15mm

Density

14.4g/cm3-14.9g/cm3

Tensile Strength

≥1800-2600

Hardness(HRA)

≥89-97

Surface

Alkaline cleaning,High Polished,Bright,Blank

Certification

ISO 9001,SGS


Tungsten Carbide Wire Drawing Die Pictures:

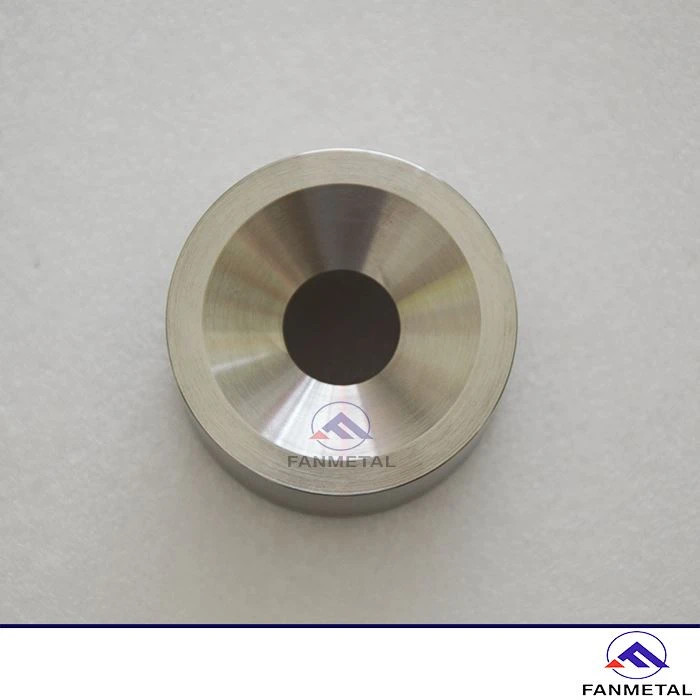

High Density Tungsten Alloy Wire Drawing Dies

Tungsten Alloy Wire Drawing Dies
