99.95% Top Grade Polished Molybdenum Sheet Plate Thickness 25mm Length300mm
Product Introduction
Our Tungsten Ion Implant Parts, Tungsten Wire Heating Elements, Industrial Titanium strictly follow national standards to control product quality, and we provide perfect after-sales service. We continue to strengthen internal management, reinforce group control, and accelerate the adjustment of institutional mechanisms. Our company insists on the social responsibility goal of developing the company and serving the society, realizing staff growth and customer satisfaction with the development of the company, and promoting economic development and social harmony. We always develop and design kinds of novel items to meet the market demand and help the guests continuously by updating our goods. For a long time, our products with its reasonable structure, excellent performance, exquisite technology, preferential prices, well received by the majority of customers.
Pure Zirconium Metal Foil
Zirconium is a light gray silver metal with high density, high melting point and high hardness. It is part of the refractory metal and is often alloyed with the metal niobium. The production process of zirconium metal foils is mainly composed of hot rolling, cold rolling, multi-roll rolling mill, pickling, degreasing, heat treatment and shearing.Pure Zirconium Metal Foils are a thin metal coil made of zirconium,which have the advantages of good toughness, high plasticity, easy deformation processing, and strong corrosion resistance. The minimum thickness is 0.025mm and the width is about 100mm. It is widely used in electronics, chemical industry, etc.
FANMETAL supply the Pure Zirconium Metal Foil material Zr702 (UNS R60702) and Zr705 (UNS R60705) according to standard ASTM B551 which can be used in chemical industry, vessels and reactors, heat exchanger , porous filters,anode basket.
Available Pure Zirconium Metal Foil
Grade | R60700, R60702, R60704, R60705, R60706 etc. |
Technique | Cold Rolled, Annealed,Forging |
Purity | Zr≥99.5% |
Thickness | Minimum 0.025 mm (25 μm) |
Width | Maximum 1200mm |
Length | 500mm-3000mm or cut to size |
Density | 6.52g/cm3 |
Shape | Square |
Surface | Pickling, Bright, Polished,Mirror |
Standard | ASTM B551,GB6431-91 |
Certification | ISO9001 |
Advantages of Zirconium Foil
First-class technology and the rigorous work attitude
Professional teams to solve all kinds of problems you have during the manufacturing process
Low purchasing cost for repetitive orders
Excellent customer services
Application of Zirconium Foil
Zirconium foils can be an excellent material for manufacturing nuclear power rods and building nuclear reactors because of its very small neutron absorption cross section and excellent high temperature performance.Zirconium foils are widely used in aerospace, military, nuclear reaction, chemical industry, smelting, medical, atomic energy, jewelry and other fields.The excellent corrosion resistance of zirconium foils makes them widely used in the chemical industry where corrosives are used, such as the manufacture of corrosion-resistant reaction towers, pumps,valves, nozzles,heat exchangers,conduits and vessel linings. In addition, zirconium can absorb a large amount of oxygen, hydrogen, ammonia and other gases during heating, and is an ideal getter, such as making zirconium foils as grid and anode support.

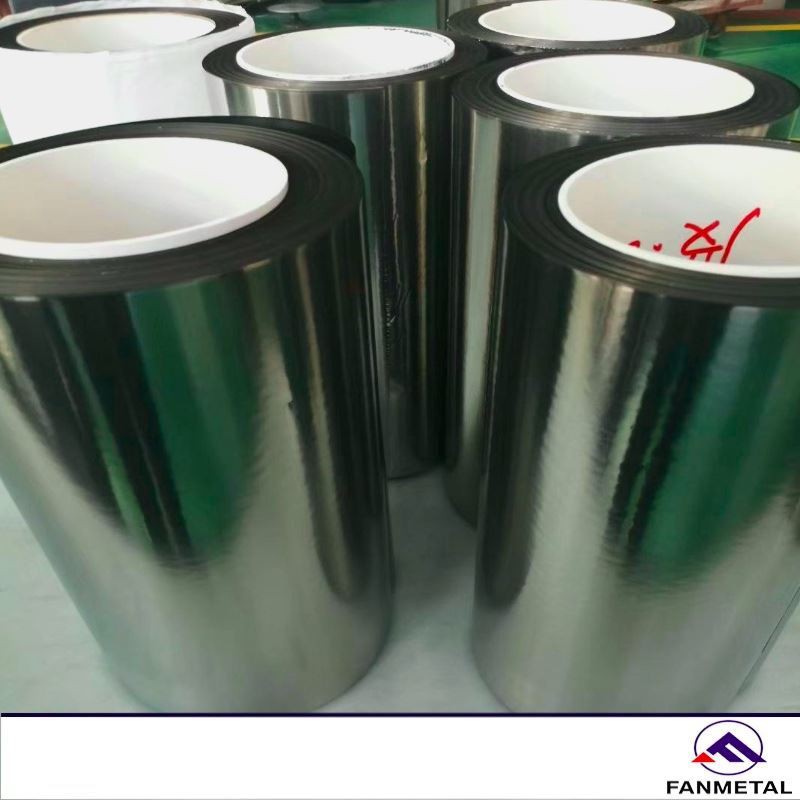

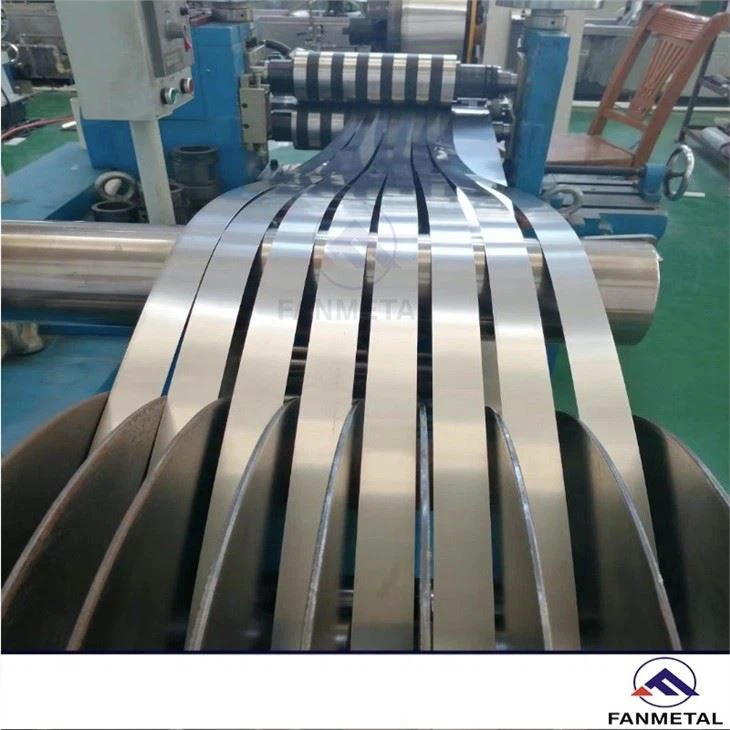

Zirconium Metal Foil Pictures:
Pure Zirconium Metal Foil Chemical Composition:
Grade | Zr+Hf | Hf | Fe+Cr | Sn | H | N | C | O | Nb |
R60702 | 99.20% | <4.5% | <0.20% | - | <0.005% | <0.015% | <0.030% | <0.15% | - |
R60704 | 97.50% | <4.5% | 0.2-0.4% | 1.0-2.0% | <0.005% | <0.015% | <0.030% | <0.16% | - |
R60705 | 95.50% | <4.5% | <0.2% | - | <0.005% | <0.015% | <0.050% | <0.16% | 2.0-3.0% |
We are a high-tech enterprise dedicated to the industry of 99.95% Top Grade Polished Molybdenum Sheet Plate Thickness 25mm Length300mm and have a complete and scientific quality management system. We create an appropriate learning atmosphere, so that each employee has the pressure and motivation to improve themselves, and our company values and provides training opportunities for employees. We always hold on the company's principle 'honest, professional, effective and innovation', and missions of: let all drivers enjoy their driving at night, let our employees can realize their value of life, and to be stronger and service more people.
Hot Tags: pure zirconium metal foil, suppliers, manufacturers, factory, customized, wholesale, price, quotation, for sale, Homo Valve For Homogenizer, 99 95 pure tungsten twisted wire, 90 platinum 10 iridium wire, Industrial Titanium Foil, Thermocouple Protection, 1 tungsten disc
