Tungsten High Heavy Aloy Ball (used for Balancing weights)
Product Introduction
We have always been dedicated to improving the efficiency and performance of businesses in all types of industries. And we have done this by continuously providing Pure Iridium Electrode, Beryllium Copper Rod, Uns R60901 Zirconium 2 5niobium Alloy Bar and services people can trust. In order to provide customers with portable and accurate service our company has established a network of direct sales service centers. We always welcome active and progressive talents to join our team and contribute to the long-term development of our company.
overview

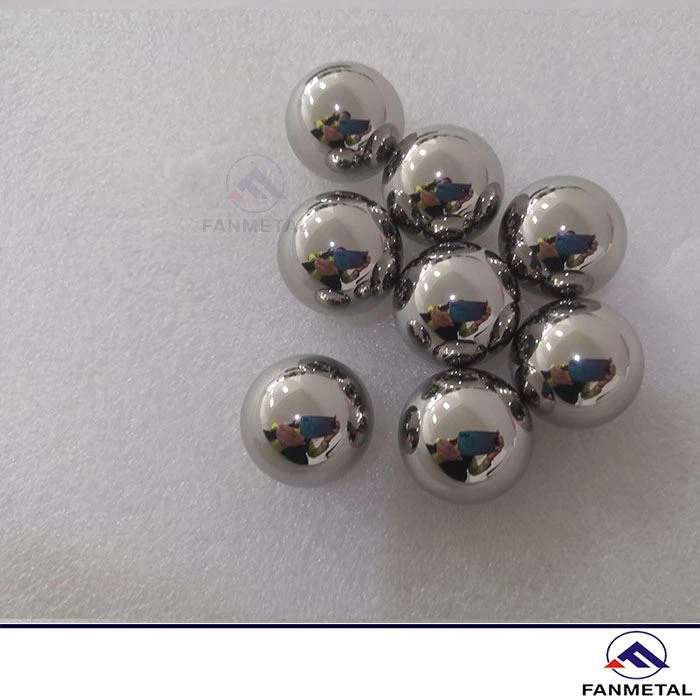

Tungsten Heavy Alloy Balls are spherical products made from tungsten heavy alloys such as W-Ni-Fe and W-Ni-Cu. With high tungsten content and density up to 18.75 g/cm³, they provide high mass in a compact size. They are widely used for counterweights, balancing components, radiation shielding, and other applications requiring compact mass.
FANMETAL supplies tungsten alloy balls in different grades, densities, and diameters for applications requiring high density, compact weight, balance, or inertia. Standard and custom sizes are available according to drawings or application requirements.
Specifications of Tungsten Alloy Ball
| Item | Specification |
|---|---|
| Material | W-Ni-Fe, W-Ni-Cu |
| Tungsten Content | 85–99 wt.% |
| Diameter | 2–100 mm (according to customer requirements) |
| Tolerance | Usually ±0.02mm |
| Density | 15.8–18.75 g/cm³ |
| Surface | Sintered, forged, ground |
| Shape | ball/pellet |
| Standard | ASTM B777,MIL-T-21014,GB |
| Customization | Custom sizes and specifications available |
Applications For Tungsten Heavy Alloy Spheres
- Counterweights and balancing components
- Aerospace and industrial ballast
- High-density components
- Precision instruments
- Radiation shielding components
- Specialized engineering applications
Tungsten Heavy Alloy Grades
Tungsten heavy alloy balls are available in different tungsten contents and alloy systems. Common grades include W-Ni-Fe and W-Ni-Cu alloys with approximately 90% to 97% tungsten. Higher tungsten content generally provides higher density. ASTM B777 classifies tungsten heavy alloys into four classes based on tungsten content and density.
| Grade | Tungsten Content | Nominal Density |
|---|---|---|
| ASTM B777 Class 1 | 90% | 17.0 g/cm³ |
| ASTM B777 Class 2 | 92.5% | 17.5 g/cm³ |
| ASTM B777 Class 3 | 95% | 18.0 g/cm³ |
| ASTM B777 Class 4 | 97% | 18.5 g/cm³ |
Customization
Tungsten heavy alloy balls can be supplied in different diameters, grades, densities, and surface finishes. Custom dimensions and specifications can be produced according to customer drawings or application requirements. Please contact us with the required material grade, diameter, quantity, and tolerance.
FAQ
Q: What are tungsten heavy alloy balls made of?
A: Tungsten heavy alloy balls are commonly made from W-Ni-Fe or W-Ni-Cu alloys with a high tungsten content.
Q: What is the density of tungsten heavy alloy balls?
A: The density typically ranges from about 15.8 to 18.75 g/cm³, depending on the alloy grade.
Q: What sizes are available?
A: FANMETAL supplies tungsten heavy alloy balls in diameters from 2 mm to 100 mm, with custom sizes available.
Q: What grades of tungsten heavy alloy balls are available?
A: Common grades include 90WNiFe, 93WNiFe, 95WNiFe, 97WNiFe, as well as W-Ni-Cu grades.
Q: Can tungsten heavy alloy balls be customized?
A: Yes. Diameter, alloy grade, density, surface finish, and other specifications can be customized according to drawings or application requirements.
