Nickel Capillary Pipe Description

The reason why nickel has high corrosion resistance is that it is a relatively noble metal in the electrochemical series of metals, and the alloy formed by adding chromium, molybdenum, copper and other metal elements can make it have higher oxidation resistance and corrosion resistance. Corrosion resistance. Therefore, pipes made of corrosion-resistant nickel-based alloys are the first choice for basic industry manufacturers. Because of its small size and superior performance, Nickel Capillary Pipes are very suitable for instrumentation, electronic components, medical, high-temperature chemical, aircraft manufacturing, automobile manufacturing or military equipment manufacturing and other industries.

Properties of Nickel Capillary Pipe:

1. Superior mechanical properties and mechanical properties

2. Good high temperature resistance and oxidation resistance

3. The high nickel content provides the corrosion resistance of many organic and inorganic compounds, and also makes it almost unaffected by chloride ions

4. Has good resistance to various acids (sulfuric acid, hydrochloric acid, phosphoric acid) and alkaline solutions

5. Excellent welding performance, toughness, ductility and durability

Nickel Capillary Pipe Specifications:

• Caplliry Tube Material: Inconel Alloys, Hastelloy Alloys, Monel Alloys, Kovar Alloy, Invar Alloy ect

• Tube Size: OD 2x0.2x2000mm, Wall Thickness 0.03-0.6mm, Customized Size

• Tube Length: 10mm-6000mm

• Surface : Polished,Mirro Surface,Birght,Pickling

• Standards: ASTM,ASME SB167,EN,JIS,DIN,GB

Nickel 200	Ni	C	Mo	Mn	Si	Fe	P	S	Cu
99.0 Min	0.15 Max	–	0.35 Max	0.1 Max	0.4 Max	–	0.01 Max	0.25 Max
Nickel	Ni	C	Mo	Mn	Si	Fe	P	S	Cu
Balance	0.15 Max	–	0.35 Max	0.35 Max	0.40 Max	–	0.01 Max	0.25 Max

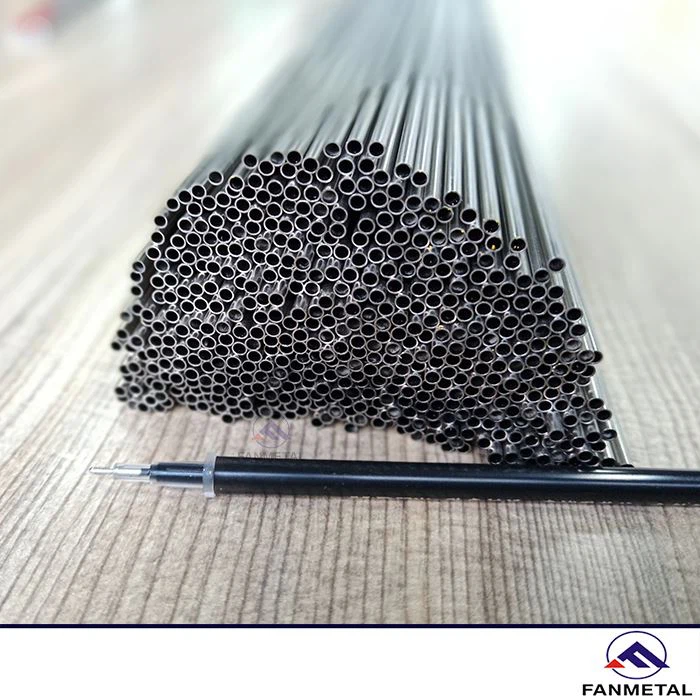

Nickel Capillary Pipe Pictures:
