YG8 Tungsten Carbide Block
YG8 Tungsten Carbide Block Description
YG8 is one of the most commonly used grades in cemented carbide, and its service strength, wear resistance and impact toughness are all better than YG6. YG8 Tungsten Carbide Block is generally made by hot isostatic pressing technology, and its composition is mainly based on tungsten carbide material and a small amount of metal cobalt is added as a particle binder, which further improves the structure tightness and wear resistance of the alloy material. YG8 Tungsten Carbide Blocks are very suitable for application in metallurgical manufacturing, mining, oil extraction, medical, electronic, chemical and aerospace industries. If you need other grades of cemented carbide products, we can also provide you.
Features of YG8 Tungsten Carbide Block:
1. High bending and tensile strength, high melting point, high toughness
2. Excellent impact resistance, high temperature resistance and wear resistance
3. Stable chemical properties, strong corrosion resistance
4. Good surface finish, long service life and high cost performance
YG8 Tungsten Carbide Block Specifications:
|
Grade |
YG8 |
|
Purity |
WC:92%,Co:8% |
|
Technique |
Pressing,Hot-rolled,Cold-rolled,Welding,Punching,Forging |
|
Width |
1mm-30mm |
|
Thickness |
0.5-6mm |
|
Length |
25mm-150mm |
|
Density |
13g/cm3-14.9g/cm3 |
|
Melting point |
2600℃ |
|
Hardness |
89.5 HRA |
|
Surface |
Alkaline cleaning,High Polished,Bright,Blank |
|
Delivery Time |
15-20 days |
|
Certification |
ISO 9001 |

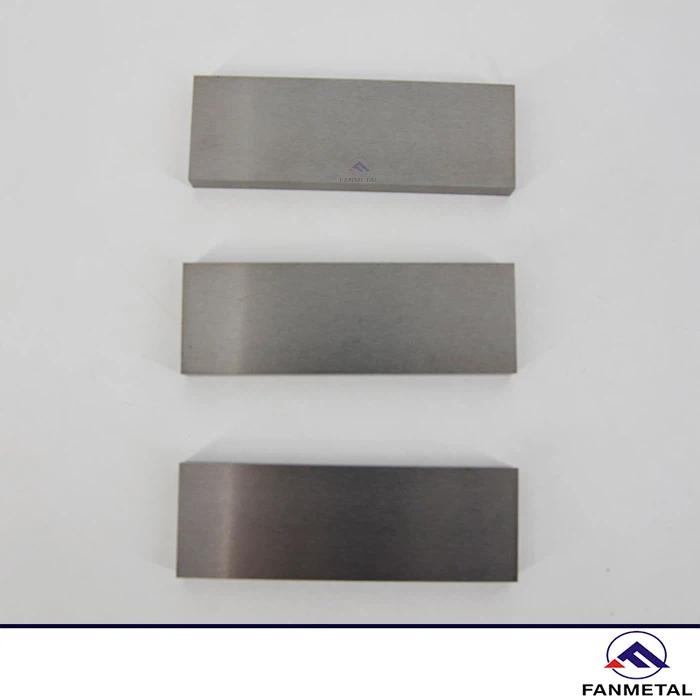

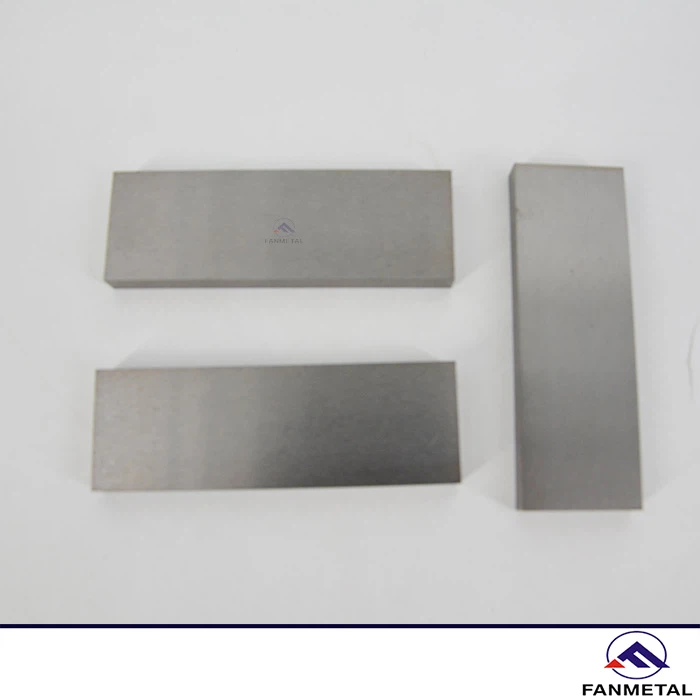

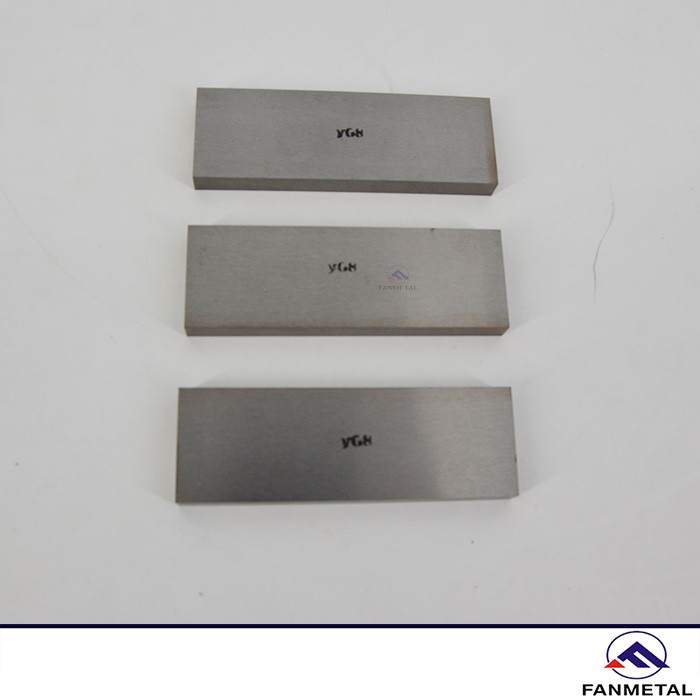

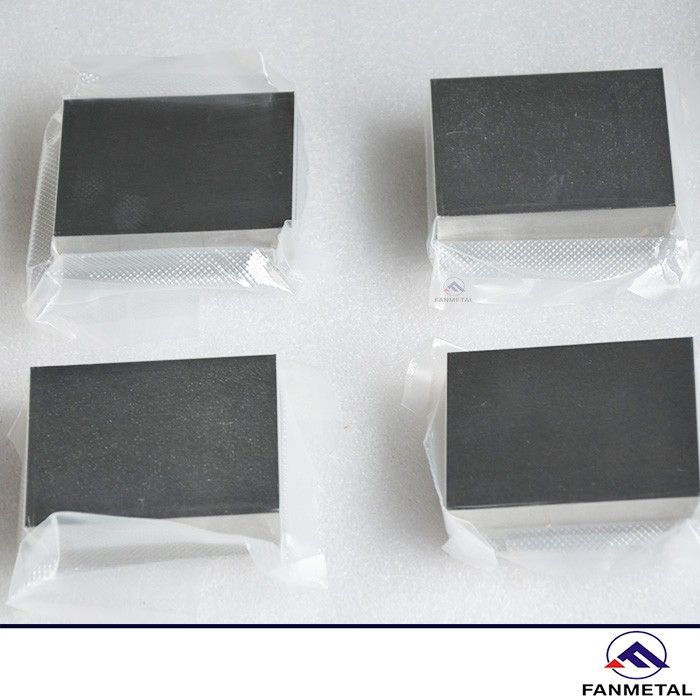

YG8 Tungsten Carbide Block Pictures:
