White Tungsten Stranded Wire Wal1 for Heating Element
Product Introduction
We are dedicated to manufacturing Platinium iridium Alloy, Tungsten Carbide Stud, Beryllium Copper Tube with the principle of 'the Best quality, the lowest price and the promptest delivery'. We warmly welcome our customers from home and abroad to visit us ! Please feel free to contact us! We have several production lines with advanced production level, high production efficiency and guaranteed quality to ensure our customers have a good purchasing experience. With more than ten years, our company have been adhering to the 'integrity management, quality first'business philosophy, and has grown in the fierce competitive market.
Tungsten Rhenium Wire
Fanmetal supply the Tungsten Rhenium Wire which commonly used for tungsten sapphire or sapphire tungsten-rhenium alloy wire for single crystal sapphire binding Model: W-3Re/W-25Re, W-5Re/W-20Re, W-5Re/W-26Re, W/W-26Re,
Diameter 0.3mm, 0.5mm etc.
Model: WRe3 / 25, WRe5 / 26, WRe5 / 20
Description:Low-rhenium alloy wire and high-rhenium alloy wire are matched to form a thermocouple, which has high thermoelectric potential and sensitivity, and has a wide temperature measurement range, fast response speed and good corrosion resistance. It is a good thermal sensing material in the field of temperature measurement. Due to the good performance and low cost of tungsten-rhenium wire, it is the general trend for tungsten-rhenium thermocouples to replace platinum-rhodium thermocouples.
Applicable conditions:Use in vacuum, hydrogen, inert atmosphere, and its operating temperature range is 0 ~ 2300 ℃.Tungsten Rhenium Wire has good electrical properties, ductility and processability, and can be used for thermocouple temperature measurement in high temperature furnaces.
Adding rhenium can improve the ductility of tungsten rhenium wire after recrystallization, and can be better used in lighting or thermocouples.As a thermocouple material, tungsten rhenium wire is mainly used in temperature measuring instruments, and is also very suitable for vacuum, reducing atmosphere and inert atmosphere. Tungsten rhenium wires are widely used in electron tubes, picture tubes, heating wires of light bulbs and temperature measuring instruments, and the service life of these materials is greatly improved.
Non-uniform thermo-electromotive force: The non-uniform thermo-electromotive force of the entire coil (disk) of the positive or negative wire at 1200 ° C must not exceed 40-80 μV.

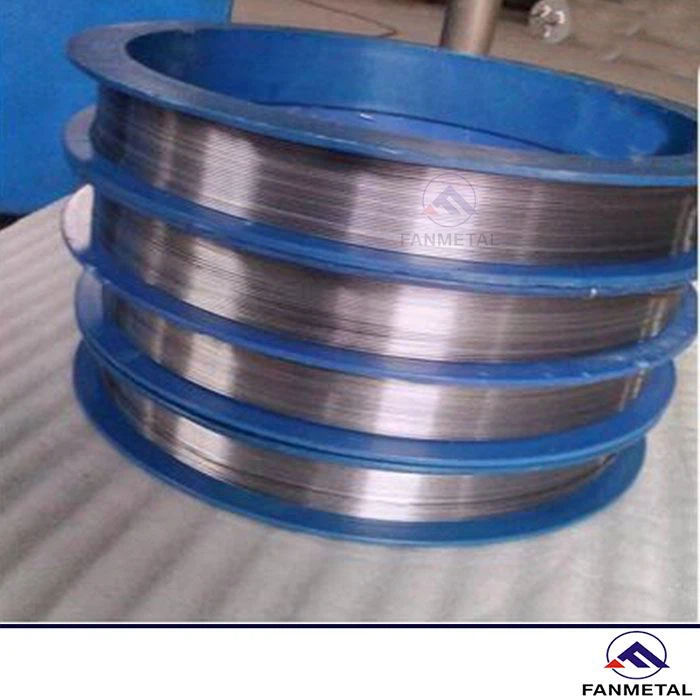

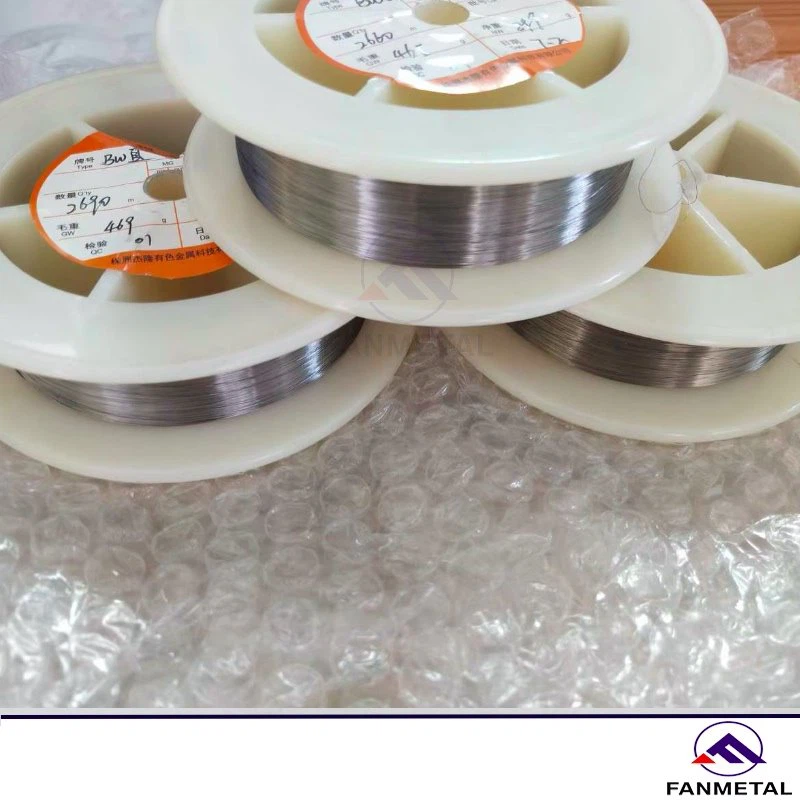

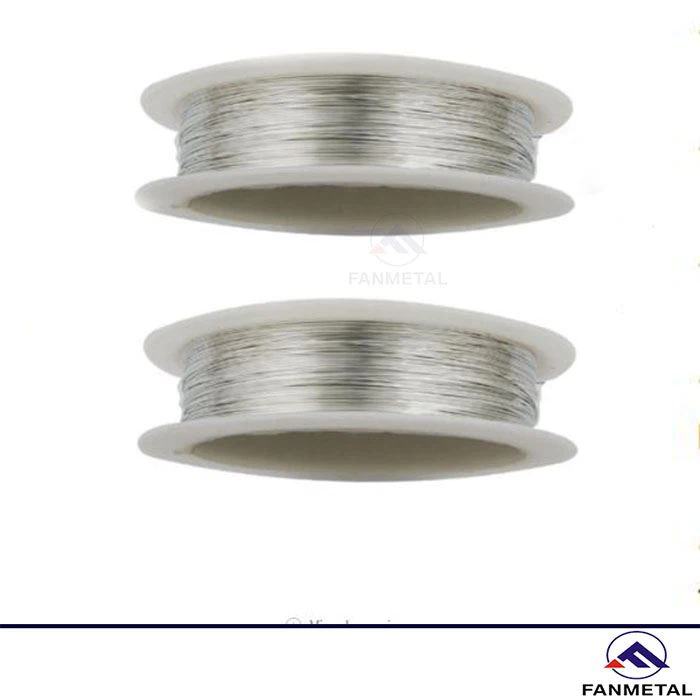

Tungsten Rhenium Wire Picture:
Alloy Diameter mm | Wire Condition | Tensile Strength UTS Mpa | Elongation (%) | Microhardness VHN |
W-3Re 0.18~1.02 | drawn 50% | 2.1-3.0 | 0.5-3.0 | 470 -600 |
annealed | 1.4-2.0 | 10-30 | 380 -460 | |
W-5Re 0.18~1.02 | drawn 50% | 2.0-3.0 | 0.5-3.0 | 450 - 600 |
annealed | 1.2-1.8 | 10-30 | 350 - 430 | |
W-25Re 0.05-1.27 | drawn 40-60% | 2.4-3.5 | 0.5-3.0 | 540 -750 |
annealed | 1.7-2.3 | 10-25 | 470 - 530 |
We struggle for creating an environment conducive to innovation activities, to enhance our innovation capabilities, and thereby increase the added value of our White Tungsten Stranded Wire Wal1 for Heating Element. The company has a group of experienced technical management personnel and efficient and professional after-sales service personnel, strong technical force, advanced technology, sophisticated products, a set of strict testing system, fine quality management and perfect before-sale and after-sales service system. Creating value for our customers, providing outstanding products and excellent services are our constant commitment to them.
Hot Tags: Tungsten Rhenium Wire, suppliers, manufacturers, factory, customized, wholesale, price, quotation, for sale, stellite disc, Cobalt Seaming Roller, Tungsten Copper Plate, Tremor Alloys Zirconium Tube, Copper Cu Rod, Tungsten Carbide Plate
