ACETRON 5N 99.999% High Purity Argentum/Silver Sputtering Tubular Target for PVD Coating
Product Introduction
Meeting the market demand and producing marketable Titanium And Alloys, Palladium Allloy Sheet, Noble Metal is one of the important issues we are facing at present. We are committed to meeting or even exceeding customer expectations to achieve overall satisfaction. We guarantee with considerate and forward-looking service, in order to exceed the expectations of customers. Through cooperation with universities and scientific research institutions, the company continuously develops new products, improves new processes, and enhances product quality. Our company follows the trend, actively meets the challenges of multinational companies, and takes the road of win-win cooperation. We hope to build a world-class enterprise with global competitiveness along the road of high-quality development.
Silver Sputtering Target
Description:Silver is a soft and lustrous transition precious metal with good ductility and reflectivity,highest electrical and thermal conductivity and lowest contact resistance,mostly a by-product of copper, gold, lead and zinc purification ,widely used in jewelry, silverware,solder and electrical contacts and other products.Silver Sputtering targets are mainly made by powder metallurgy process,which have undergone powder hot pressing,sintering,hot isostatic pressing,vacuum coating,forging,wire cutting,polishing and other processing processes.Now the heat resistance and service life of silver alloys are mainly improved by adding some precious metals.
Application:Due to its high electrical conductivity, high reflectivity and high wear resistance,silver sputtering targets are widely used in various fields,mainly including: automotive, aerospace,scientific research,microelectronics,optical communication,tribology,information and data storage industries,electronic and electrical industry,semiconductor,lighting,glass and coating industry and solar energy,etc.High-performance silver sputtering targets are mainly used in the thin-film coating industry,such as decorative coatings and antibiotic coatings in medical devices, large-area coatings for fuel cells,and metal tool coatings.
FANMETAL supply the silver sputtering target and other precious metal sputtering targets used in PVD coating system .Such as Au gold sputtering target , Ag silver sputtering target , Pt platinum sputtering target , Ir iridium sputtering target, Ru ruthenium sputtering target .
We manufacture a wide range of high purity metal sputtering targets - up to 99.9999% pure and sized exactly to your drawings. For silver/silver sputtering targets, our sales engineers will contact you immediately once we get your detailed enquiry about material, purity, size, any special tolerance and required quantity.
Specification for Silver Sputtering Target
| Product Name | Silver Sputtering Targets |
| Item Code | ST-PE47 |
| Purity | 99.97%-99.999% |
| Shape | Discs, Plates, Column Targets, Tubing Targets, Custom-made |
| Dimensions | Round sputtering target: Diameter: <18”, Thickness: >0.04” Rectangular sputtering target: Length: <36”, Width: <12”, Thickness: >0.04” |
| Bonding | Indium |

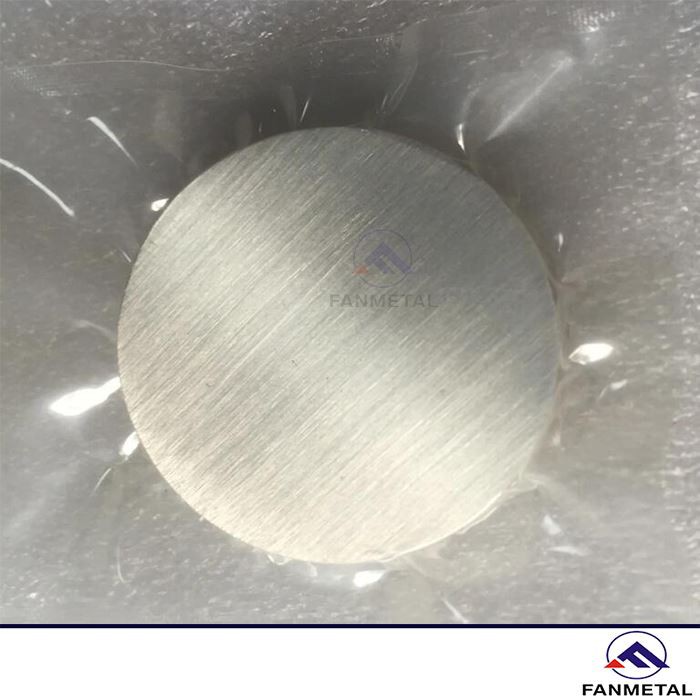

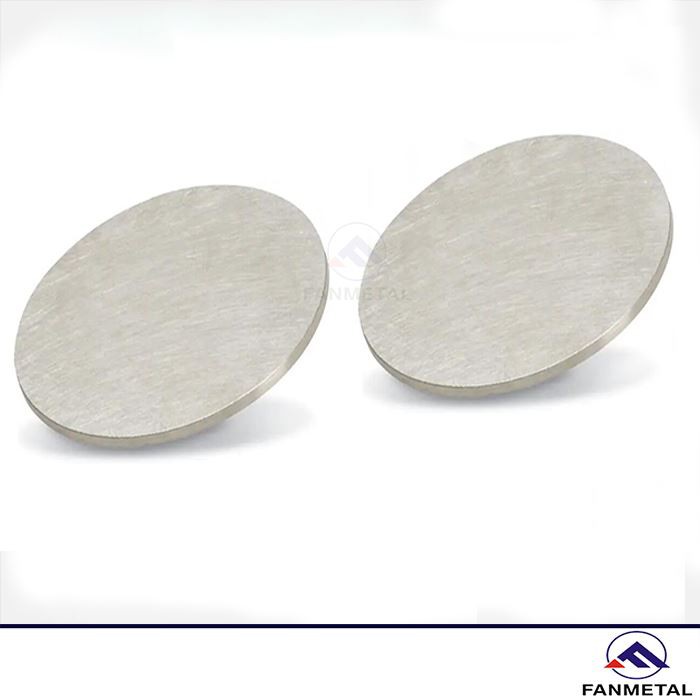

Silver Sputtering Target Picture:
Silver Sputtering Target Specifications:
Name | Size | Purity |
Silver Wire（Ag） | Φ0.2—1.0mm | 99.9% 99.99% 99.999% 99.9995+% 99.9999% 99.9999+% |
Φ1.0—3.0mm | 99.9% 99.99% 99.999% 99.9995+% 99.9999% 99.9999+% | |
Φ3.0—6.0mm | 99.9% 99.99% 99.999% 99.9995+% 99.9999% 99.9999+% | |
Silver sheet（Ag） | 50*50*(0.2-1.5)mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% |
100*100*(0.2-1.5)mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
200*250*(0.2-1.5)mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Silver rod（Ag） | Φ（10-152.4）*1000mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% |
Φ25.4*1000mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Φ50.8*500mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Φ76.2*200mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Φ101.6*200mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Φ127*200mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Φ152.4*200mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Silver pellets（Ag） | 1-10mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% |
Φ2*10mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Φ3*3mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Φ3*10mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Φ6*6mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% | |
Φ6*12mm | 99.9% 99.99% 99.999% 99.999+% 99.9999% 99.9999+% |
FANMETAL is an enterprise serving the global coating industry and one of the leading manufacturers of target materials and evaporation materials, with rich experience in this field. Its products include: various series of sputtering targets and evaporation materials. At the same time, we also provide target binding services, evaporation materials, evaporation sources (crucibles, evaporation boats, hot filaments), substrates and wafers. Good product quality is the guarantee of our international reputation.
The company continues to improve business efficiency and costs, and is committed to creating maximum value for ACETRON 5N 99.999% High Purity Argentum/Silver Sputtering Tubular Target for PVD Coating. Owing to excellent assistance, a variety of top of the range items, aggressive costs and efficient delivery, we take pleasure in a very good standing amongst our shoppers. We continue to devote ourselves to innovation occupying the mid-to-high-end market with differentiated strategies, and strive to create a century-old brand.
