ASTM B366 Nickel Pipe Fittings
ASTM B366 Nickel Pipe Fittings Description & Application
Nickel is a highly versatile material that can function in a wide range of temperatures, pressures and corrosive environments. The nickel pipe fittings produced by our company not only meet the international standard ASTM B366, but also have various excellent properties of nickel, such as high strength, high durability, good high temperature stability, strong corrosion resistance, good oxidation resistance, strong structure, size Accurate, easy to install, easy to clean and high safety. ASTM B366 Nickel Pipe Fittings commonly used grades are grades 200 and 201, which are mainly composed of silicon, manganese, sulfur, copper, carbon and ferrous iron.ASTM B366 Nickel Pipe Fittings can be used in a variety of piping systems, mainly for conveying gases and liquids. Of course, Nickel Pipe Fittings has a very wide range of applications, involving the energy industry, the pharmaceutical industry, the chemical processing industry, the pulp and paper industry, the food processing industry and the oil and gas industry.
ASTM B366 Nickel Pipe Fittings
Grade | C | Mn | Si | S | Cu | Fe | Ni |
Nickel 200 | 0.15 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Nickel 201 | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
Grade | Nickel 200,201 |
Type | Seamless ,Welded ,Fabricated |
Outer diameter | Φ12-220mm |
Wall Thickness | 0.5-20mm |
Length | ≦6000mm |
Shape | Round,Square,,Coiled,“U” Shape,Pan Cake Coils,Hydraulic Tubes |
Surface | Pickled and Annealed,Rust Oil,Painting,Stain,Polished,Mirror,etc |
Delivery Time | 20 days |
Standard | ASTM A403,ASTM B366,GB |
Certification | ISO9001 |

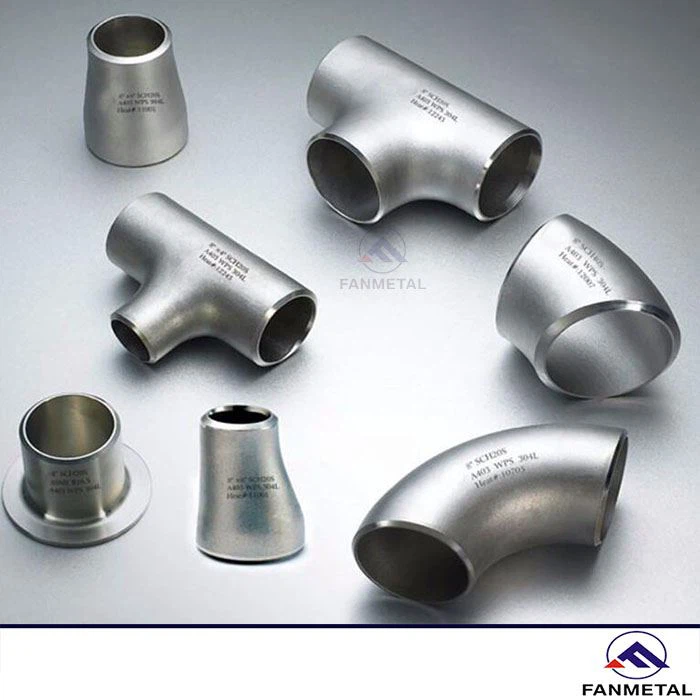

ASTM B366 Nickel Pipe Fittings Pictures:
